UPS
By integrating UPS with ToolJet you can track packages, calculate shipping rates, validate addresses, and automate logistics processes, all within your ToolJet applications to enhance operational visibility and reduce manual overhead.

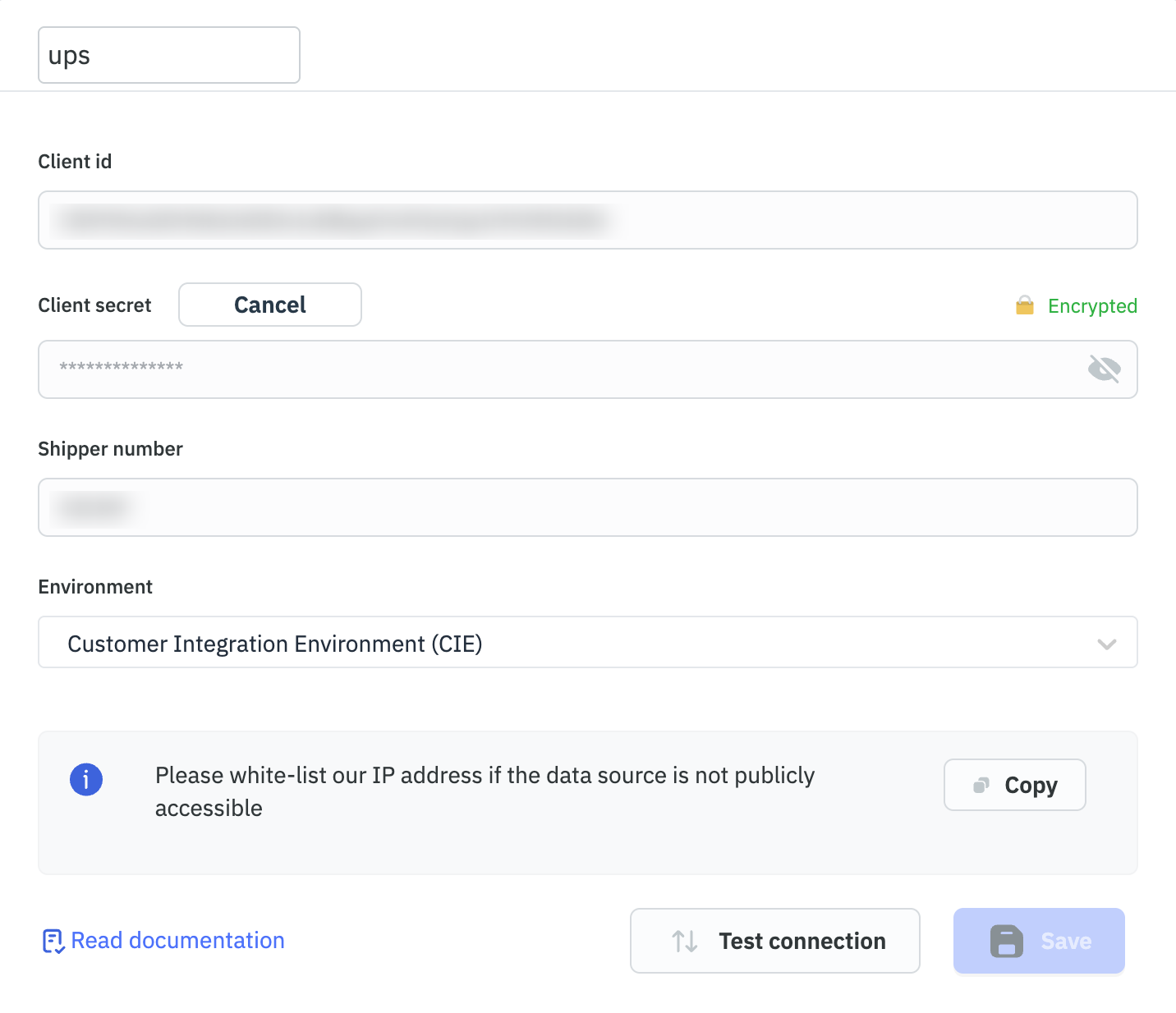

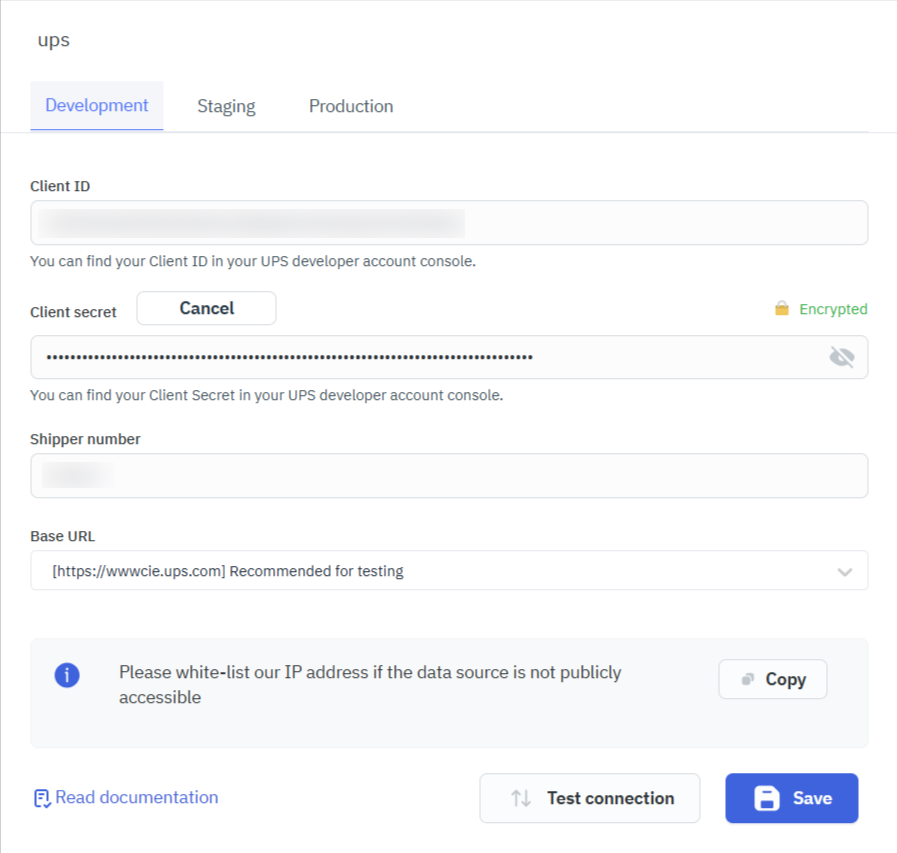

Connection
To connect with UPS you need the following credentials:
- Client ID
- Client secret
- Shipper number
You can follow the steps in the Getting Started with UPS APIs guide to generate these credentials.
Supported Operations
Shipping
Version
| Method | Endpoint | Description |
|---|---|---|
| POST | /shipments/{version}/ship | Create a new shipment. |
| DELETE | /shipments/{version}/void/cancel/{shipmentIdentificationNumber} | Cancel a shipment using its shipment ID. |
| POST | /labels/{version}/recovery | Recover a label for a previously created shipment. |
Deprecated Version
| Method | Endpoint | Description |
|---|---|---|
| POST | /shipments/{deprecatedversion}/ship | Create shipment using an older API version. |
| DELETE | /shipments/{deprecatedversion}/void/cancel/{shipmentIdentificationNumber} | Cancel shipment using an older API version. |

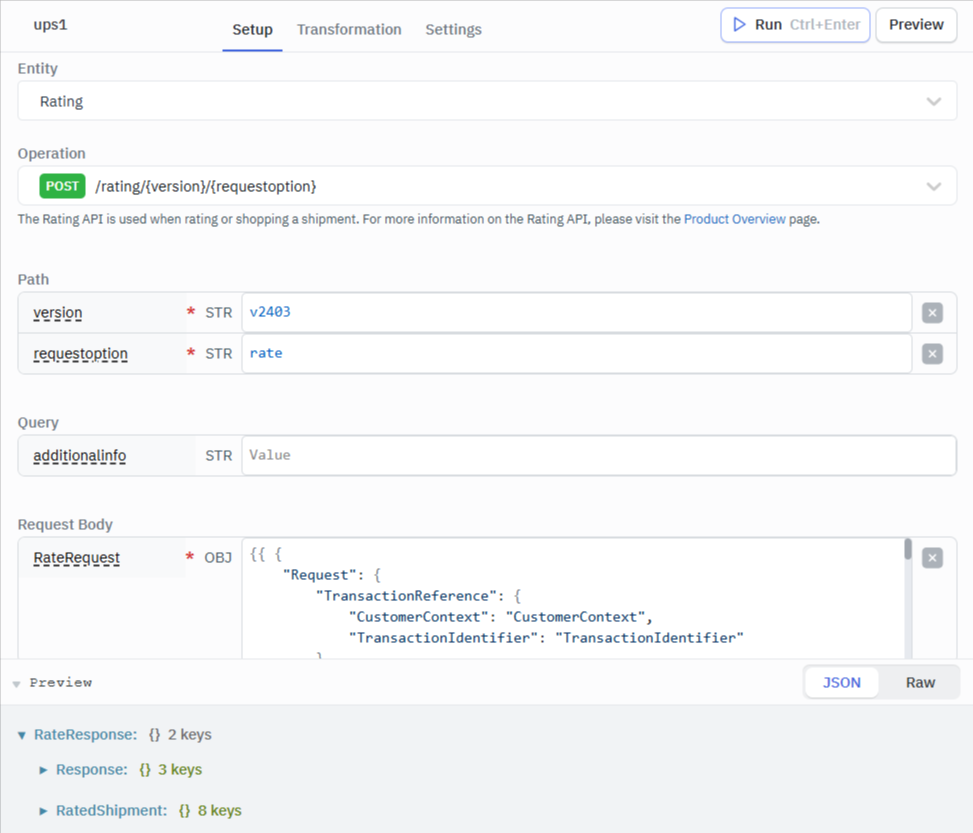

Rating
Version
| Method | API Endpoint | Description |
|---|---|---|
| POST | /rating/{version}/{requestoption} | Retrieve or calculate shipping rate quotes (UPS) |
Deprecated Version
| Method | API Endpoint | Description |
|---|---|---|
| POST | /rating/{deprecatedVersion}/{requestoption} | Retrieve shipping rate quotes using a deprecated UPS API version |
Tracking
| Method | API Endpoint | Description |
|---|---|---|
| GET | /track/v1/details/{inquiryNumber} | Retrieve shipment tracking details using the tracking (inquiry) number |
| GET | /track/v1/reference/details/{referenceNumber} | Retrieve tracking information using a shipment reference number |
Address Validation
Version
| Method | API Endpoint | Description |
|---|---|---|
| POST | /addressvalidation/{version}/{requestoption} | Validate and verify shipping addresses to ensure accuracy (UPS) |
Deprecated Version
| Method | API Endpoint | Description |
|---|---|---|
| POST | /addressvalidation/{deprecatedVersion}/{requestoption} | Validate shipping addresses using a deprecated UPS API version |
Time In Transit
| Method | API Endpoint | Description |
|---|---|---|
| POST | /shipments/{version}/{transittimes} | Retrieve estimated transit times for shipments using UPS API |
Pickup
Versions
| Method | API Endpoint | Description |
|---|---|---|
| POST | /shipments/{version}/pickup/{pickuptype} | Schedule a shipment pickup based on pickup type |
| GET | /shipments/{version}/pickup/{pickuptype} | Retrieve pickup availability or details for a specific pickup type |
| DELETE | /shipments/{version}/pickup/{CancelBy} | Cancel a scheduled pickup using a specified cancellation method |
| POST | /pickupcreation/{version}/pickup | Create a new UPS pickup request |
| GET | /pickup/{version}/countries/{countrycode} | Get pickup service availability for a specified country |
| POST | /pickup/{version}/servicecenterlocations | Locate nearby UPS service centers for pickup services |
Deprecated Version
| Method | API Endpoint | Description |
|---|---|---|
| DELETE | /shipments/{deprecatedVersion}/pickup/{CancelBy} | Cancel a scheduled pickup using a deprecated UPS API version |
| POST | /pickupcreation/{deprecatedVersion}/pickup | Create a new pickup request using a deprecated UPS API version |
