Gmail
The Gmail plugin lets you connect your Gmail account to ToolJet apps to send, read, and manage emails within your ToolJet application.
Connection

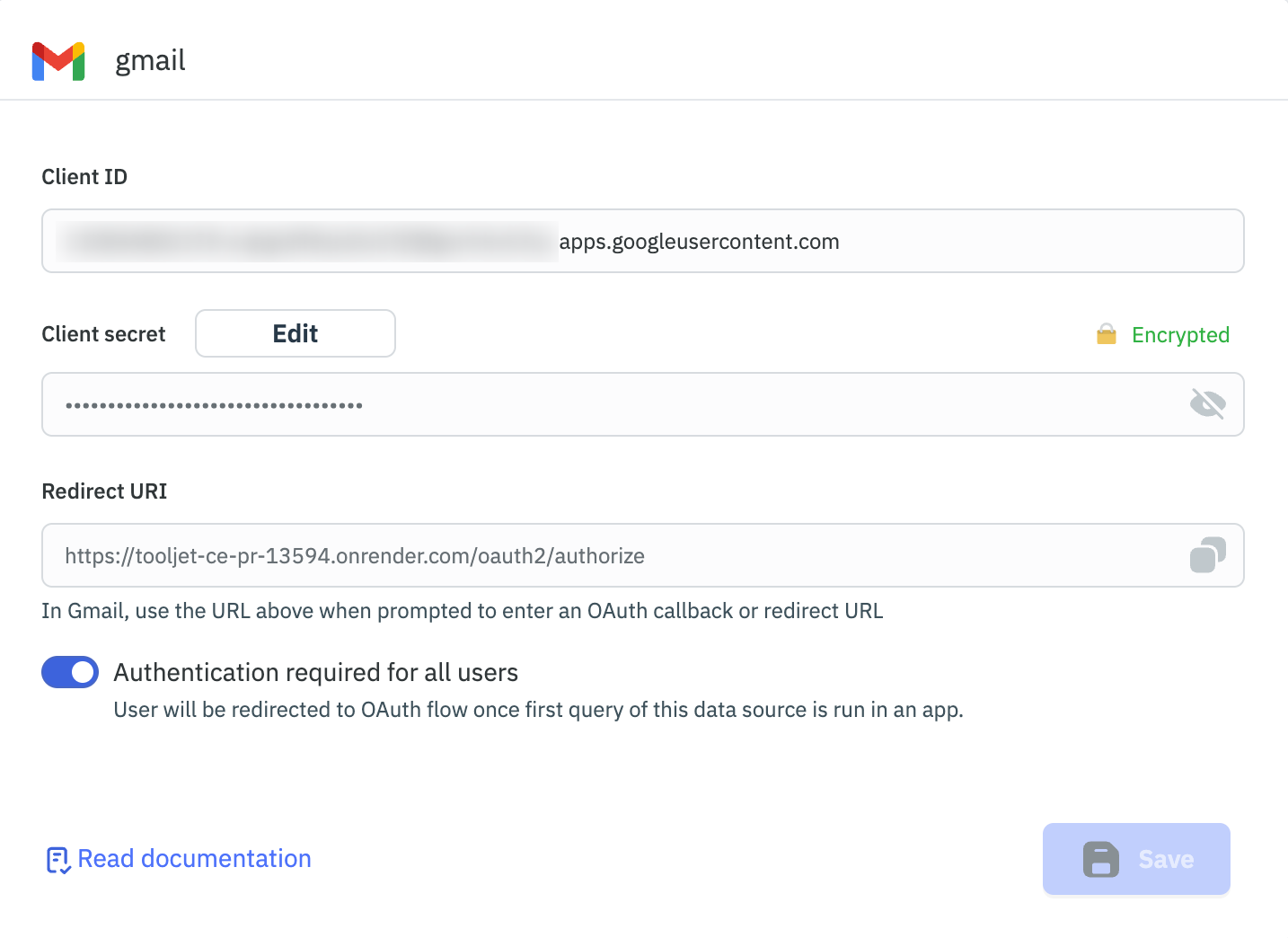

You will need the following credential to connect with Gmail:
- Client ID
- Client Secret
These credentials are used to authenticate via OAuth2 and access Gmail data securely. You can generate the required credentials from the Google Cloud Console.
You can toggle on Authentication required for all users in the configuration. When enabled, users will be redirected to the OAuth consent screen the first time a query from this data source is triggered in the application. This ensures each user connects their own Gmail account securely.
Note: After completing the OAuth flow, the query must be triggered again to load the data.
Supported Operations
User Info
| Method | Endpoint | Description |
|---|---|---|
| GET | /gmail/v1/users/{userId}/profile | Get user profile information |
Messages
| Method | Endpoint | Description |
|---|---|---|
| GET | /gmail/v1/users/{userId}/messages | List messages |
| POST | /gmail/v1/users/{userId}/messages | Create a message |
| GET | /gmail/v1/users/{userId}/messages/{messageId} | Get a specific message |
| DELETE | /gmail/v1/users/{userId}/messages/{messageId} | Delete a message |
| POST | /gmail/v1/users/{userId}/messages/{messageId}/modify | Modify message labels |
| POST | /gmail/v1/users/{userId}/messages/{messageId}/trash | Move message to trash |
| POST | /gmail/v1/users/{userId}/messages/{messageId}/untrash | Remove message from trash |
| POST | /gmail/v1/users/{userId}/messages/send | Send a message |
| POST | /gmail/v1/users/{userId}/messages/batchDelete | Delete multiple messages |
| POST | /gmail/v1/users/{userId}/messages/batchModify | Modify labels on multiple messages |
| GET | /gmail/v1/users/{userId}/messages/{messageId}/attachments/{attachmentId} | Get message attachment |
Threads
| Method | Endpoint | Description |
|---|---|---|
| GET | /gmail/v1/users/{userId}/threads | List threads |
| GET | /gmail/v1/users/{userId}/threads/{threadId} | Get a specific thread |
| DELETE | /gmail/v1/users/{userId}/threads/{threadId} | Delete a thread |
| POST | /gmail/v1/users/{userId}/threads/{threadId}/modify | Modify thread labels |
| POST | /gmail/v1/users/{userId}/threads/{threadId}/trash | Move thread to trash |
| POST | /gmail/v1/users/{userId}/threads/{threadId}/untrash | Remove thread from trash |
Drafts
| Method | Endpoint | Description |
|---|---|---|
| GET | /gmail/v1/users/{userId}/drafts | List drafts |
| POST | /gmail/v1/users/{userId}/drafts | Create a draft |
| GET | /gmail/v1/users/{userId}/drafts/{draftId} | Get a specific draft |
| PUT | /gmail/v1/users/{userId}/drafts/{draftId} | Update a draft |
| DELETE | /gmail/v1/users/{userId}/drafts/{draftId} | Delete a draft |
| POST | /gmail/v1/users/{userId}/drafts/send | Send a draft |
Labels
| Method | Endpoint | Description |
|---|---|---|
| GET | /gmail/v1/users/{userId}/labels | List labels |
| POST | /gmail/v1/users/{userId}/labels | Create a label |
| GET | /gmail/v1/users/{userId}/labels/{labelId} | Get a specific label |
| PUT | /gmail/v1/users/{userId}/labels/{labelId} | Update a label |
| PATCH | /gmail/v1/users/{userId}/labels/{labelId} | Partially update a label |
| DELETE | /gmail/v1/users/{userId}/labels/{labelId} | Delete a label |
Watch and History
| Method | Endpoint | Description |
|---|---|---|
| GET | /gmail/v1/users/{userId}/history | Get mailbox history |
| POST | /gmail/v1/users/{userId}/watch | Start push notifications |
| POST | /gmail/v1/users/{userId}/stop | Stop push notifications |
