Configuration

This feature is exclusive to self-hosted ToolJet, allowing you to configure a custom SMTP email server. This feature allows you to choose your own email server, which helps to seamlessly send emails for various purposes, including invitations, password reset requests, and notifications.

There are two ways to setup your email server in ToolJet:

1. Using the GUI: This method involves directly entering SMTP settings into the ToolJet interface, which is suitable for simpler setups.
2. With environment variables: This method utilizes environment variables for configuring the email server. It offers enhanced flexibility and security, making it particularly suitable for managing sensitive credentials in production environments.

Both methods are designed to ensure that your ToolJet instance can send emails as needed, depending on your setup preferences and security requirements.

Prerequisites

Before you begin, ensure you have:

• Super Admin access to ToolJet
• SMTP server details from your email service provider

info

If you have upgraded from a version prior to v2.62.0, the SMTP variables in your .env file will automatically be mapped to the UI.

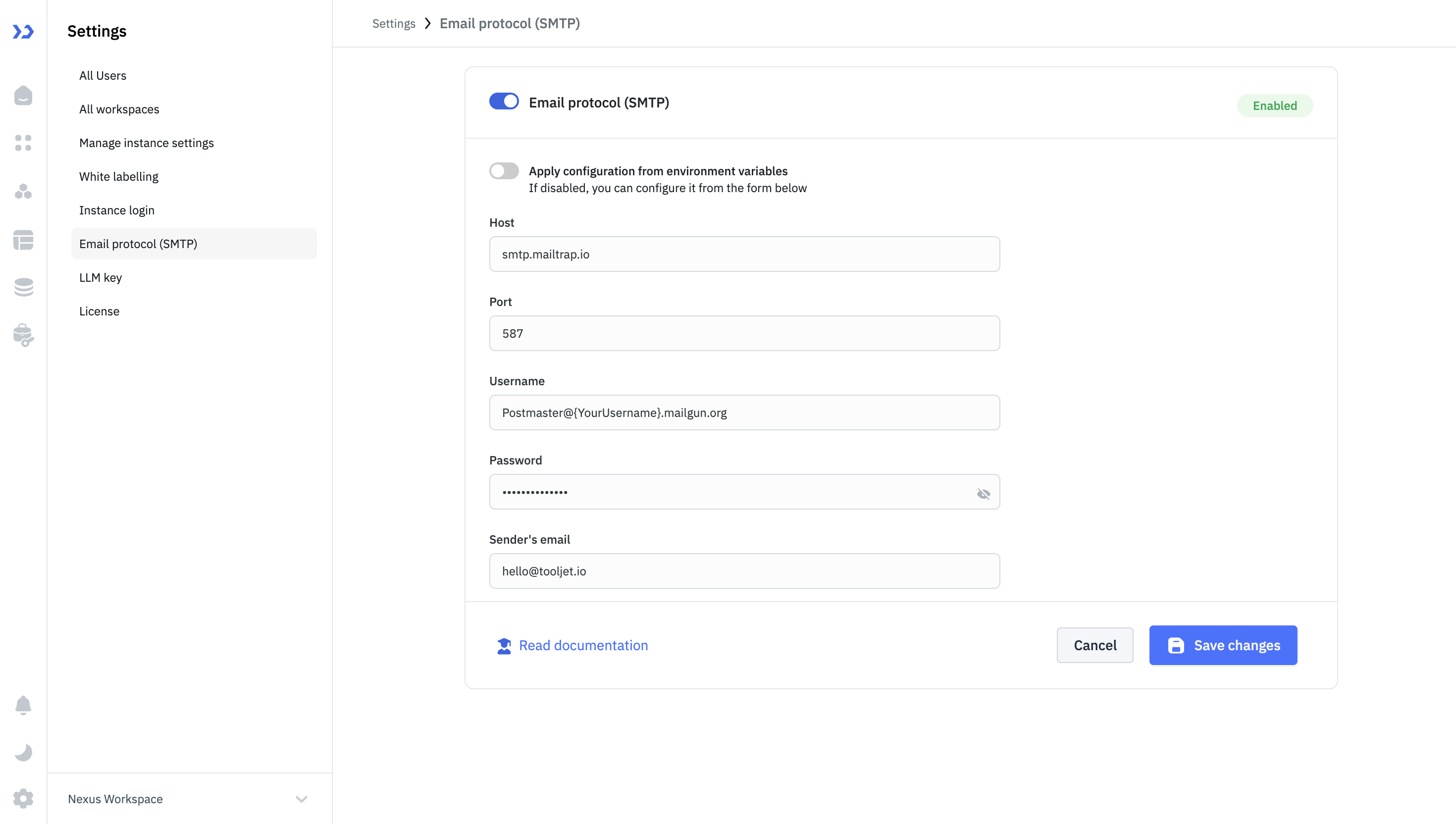

Configuration Using GUI

1. Navigate to the Settings section in ToolJet.

2. Select the Email protocol (SMTP) tab.

3. Toggle the switch to enable Email protocol (SMTP).

4. Configure the following fields:


   Field	Description	Example
   Host	SMTP server hostname	smtp.gmail.com
   Port	SMTP server port number	587
   User	SMTP account username	[email protected]
   Password	SMTP account password	a13d0sd344
   Sender's email	Email address of the sender	[email protected]

5. Click Save changes to apply the new SMTP configuration.



Configuration With Environment Variables

ToolJet allows you to configure SMTP settings using environment variables. You can enable a toggle in the Email protocol (SMTP) settings to apply or fetch the configuration directly from your .env file.

Example Environment Variables:

DEFAULT_FROM_EMAIL=hello@tooljet.io
SMTP_USERNAME=your-username
SMTP_PASSWORD=your-password
SMTP_DOMAIN=smtp.mailgun.org
SMTP_PORT=587
SMTP_SSL=false
SMTP_DISABLED=false

• For new installations, if SMTP is configured in the .env file, the Apply configuration from environment variables toggle will be turned on by default.
• When the toggle is enabled, the SMTP settings fields in the UI will be populated with values from the environment variables and will be read-only.
• Disabling the toggle allows you to manually enter or edit SMTP settings directly in the UI.
