FedEx

Using this plugin, you can integrate FedEx shipping and tracking services directly into your ToolJet apps to fetch shipment details, create shipping labels, track package status, and calculate rates, etc.

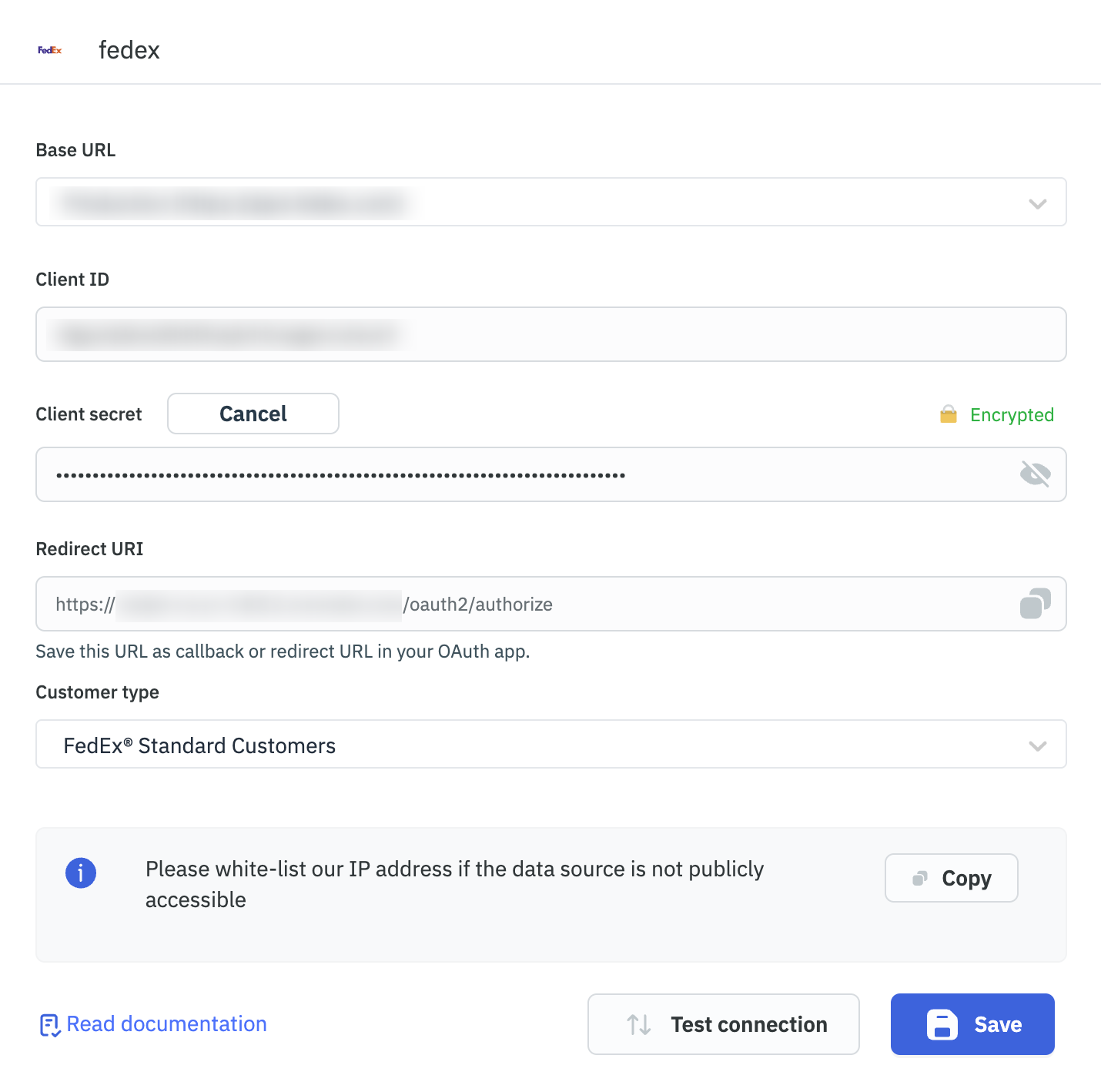

Connection

To connect the FedEx plugin to your ToolJet app, you’ll need the following credentials:

Client ID
Client Secret

If you’re a FedEx® Internal, Compatible, or Integrator Customer or a FedEx® Proprietary Parent/Child Customer, you’ll also need:

Child Key
Child Secret

Follow this to generate the required credentials from the FedEx Developer Portal.

Supported Operation

Address Validation

Method	API Endpoint	Description
POST	`/address/v1/addresses/resolve`	Validate and resolve addresses, returning standardized or corrected address information.

Ground End of Day Close

Method	API Endpoint	Description
POST	`/ship/v1/endofday/`	Create End of Day Close – submit shipping data to FedEx to close out the day’s shipments.
PUT	`/ship/v1/endofday/`	Modify End of Day Close – update or modify an existing End of Day Close request.

Ship Consolidation

Method	API Endpoint	Description
POST	`/ship/v1/consolidation/`	Create Consolidation – create a new consolidation request.
PUT	`/ship/v1/consolidation/`	Modify Consolidation – update an existing consolidation request.
POST	`/ship/v1/consolidation/shipments`	Add Shipments to Consolidation – add one or more shipments to an existing consolidation.
POST	`/ship/v1/consolidation/results`	Retrieve Consolidation Results – get processing results for a consolidation.
POST	`/ship/v1/consolidation/confirmations`	Submit Consolidation Confirmation – confirm consolidated shipments.
POST	`/ship/v1/consolidation/confirmationresults`	Retrieve Consolidation Confirmation Results – check confirmation status.
POST	`/ship/v1/consolidation/retrieve`	Retrieve Consolidation – fetch an existing consolidation by ID.
PUT	`/ship/v1/consolidation/shipments/delete`	Delete Shipment(s) from Consolidation – remove shipment(s) from an existing consolidation.
PUT	`/ship/v1/consolidation/delete`	Delete Consolidation – delete an entire consolidation record.

Open Ship

Method	API Endpoint	Description
POST	`/ship/v1/openshipments/create`	Create Open Shipment – initiate a new open shipment record.
PUT	`/ship/v1/openshipments/`	Update Open Shipment – modify an existing open shipment record.
POST	`/ship/v1/openshipments/`	Create or Submit Open Shipment – submit details to create or finalize an open shipment.
PUT	`/ship/v1/openshipments/packages`	Update Package(s) in Open Shipment – modify package details in an open shipment.
POST	`/ship/v1/openshipments/packages`	Add Package(s) to Open Shipment – add new packages to an existing open shipment.
PUT	`/ship/v1/openshipments/packages/delete`	Delete Package(s) – remove package(s) from an open shipment.
POST	`/ship/v1/openshipments/packages/retrieve`	Retrieve Package(s) – get package details from an open shipment.
PUT	`/ship/v1/openshipments/delete`	Delete Open Shipment – delete an entire open shipment record.
POST	`/ship/v1/openshipments/retrieve`	Retrieve Open Shipment – fetch an existing open shipment record by ID.
POST	`/ship/v1/openshipments/results`	Retrieve Open Shipment Results – get processing results for an open shipment.

Pickup

Method	API Endpoint	Description
POST	`/pickup/v1/pickups`	Create Pickup – create a pickup request for a package.
POST	`/pickup/v1/pickups/availabilities`	Check Pickup Availability – retrieve available pickup dates, times, or slots for a location.
PUT	`/pickup/v1/pickups/cancel`	Cancel Pickup – cancel an existing pickup request.

Postal Code Validation

Method	API Endpoint	Description
POST	`/country/v1/postal/validate/`	Validate Postal Code – validate and resolve postal/ZIP codes and return standardized or corrected information.

Rates and Transit Times

Method	API Endpoint	Description
POST	`/rate/v1/rates/quotes`	Retrieve Rates and Transit Times – get FedEx shipping rate quotes and optional transit time estimates for given shipment details.

Ship

Method	API Endpoint	Description
POST	`/ship/v1/shipments`	Create Shipment – create a new shipment, generate label, tracking number, and shipment details.
PUT	`/ship/v1/shipments/cancel`	Cancel Shipment – cancel an existing shipment.
POST	`/ship/v1/shipments/results`	Retrieve Shipment Results – get processing results or labels for a shipment.
POST	`/ship/v1/shipments/packages/validate`	Validate Packages – validate package details before creating a shipment.
POST	`/ship/v1/shipments/tag`	Create Shipment Tag – create a shipment tag for a return or pickup request.
PUT	`/ship/v1/shipments/tag/cancel/{shipmentid}`	Cancel Shipment Tag – cancel a previously created shipment tag.

Tracking (Basic Integrated Visibility)

Method	API Endpoint	Description
POST	`/track/v1/associatedshipments`	Retrieve Associated Shipments – fetch shipments linked to a master or related tracking number.
POST	`/track/v1/notifications`	Create Tracking Notifications – set up or retrieve shipment tracking notifications.
POST	`/track/v1/referencenumbers`	Track by Reference Number – retrieve shipment tracking details using reference numbers.
POST	`/track/v1/tcn`	Track by TCN – retrieve tracking details using the Transportation Control Number (TCN).
POST	`/track/v1/trackingdocuments`	Retrieve Tracking Documents – get proof-of-delivery documents or other shipment tracking docs.
POST	`/track/v1/trackingnumbers`	Track by Tracking Number – retrieve shipment status using FedEx tracking numbers.

Trade Documents Upload

Method	API Endpoint	Description
POST	`/documents/v1/etds/upload`	Upload eTDS Document – upload a single electronic trade document (ETD) to FedEx.
POST	`/documents/v1/lhsimages/upload`	Upload LHS Image – upload a label or image for LHS processing.
POST	`/documents/v1/etds/multiupload`	Upload Multiple eTDS Documents – upload multiple ETDs in one request.
POST	`/documents/v1/etds/encodedmultiupload`	Upload Base64 Encoded eTDS Documents – upload multiple Base64 encoded ETDs in one request.

FedEx Locations Search

Method	API Endpoint	Description
POST	`/location/v1/locations`	Find Locations – search for nearest FedEx locations by address, geographic coordinates, or phone number; optionally filter by location type and services offered.

LTL Freight

Method	API Endpoint	Description
POST	`/rate/v1/freight/rates/quotes`	Retrieve Freight LTL Rates – get FedEx LTL freight rate quotes and optional transit time estimates.
POST	`/ship/v1/freight/shipments`	Create Freight LTL Shipment – create a new FedEx LTL freight shipment.
POST	`/pickup/v1/freight/pickups/availabilities`	Check Freight Pickup Availability – retrieve available pickup slots for LTL freight.
POST	`/pickup/v1/freight/pickups/`	Create Freight Pickup – create a pickup request for an LTL freight shipment.
PUT	`/pickup/v1/freight/pickups/cancel/`	Cancel Freight Pickup – cancel an existing LTL freight pickup request.

Service Availability

Method	API Endpoint	Description
POST	`/availability/v1/transittimes`	Retrieve Services and Transit Times – get estimated transit times for a particular shipment.
POST	`/availability/v1/packageandserviceoption`	Retrieve Package and Service Options – get available package types and shipping services for a given origin and destination.
POST	`/availability/v1/specialserviceoptions`	Retrieve Special Service Options – get special service options (such as Saturday delivery, signature options, etc.) available for a shipment.

Example Queries

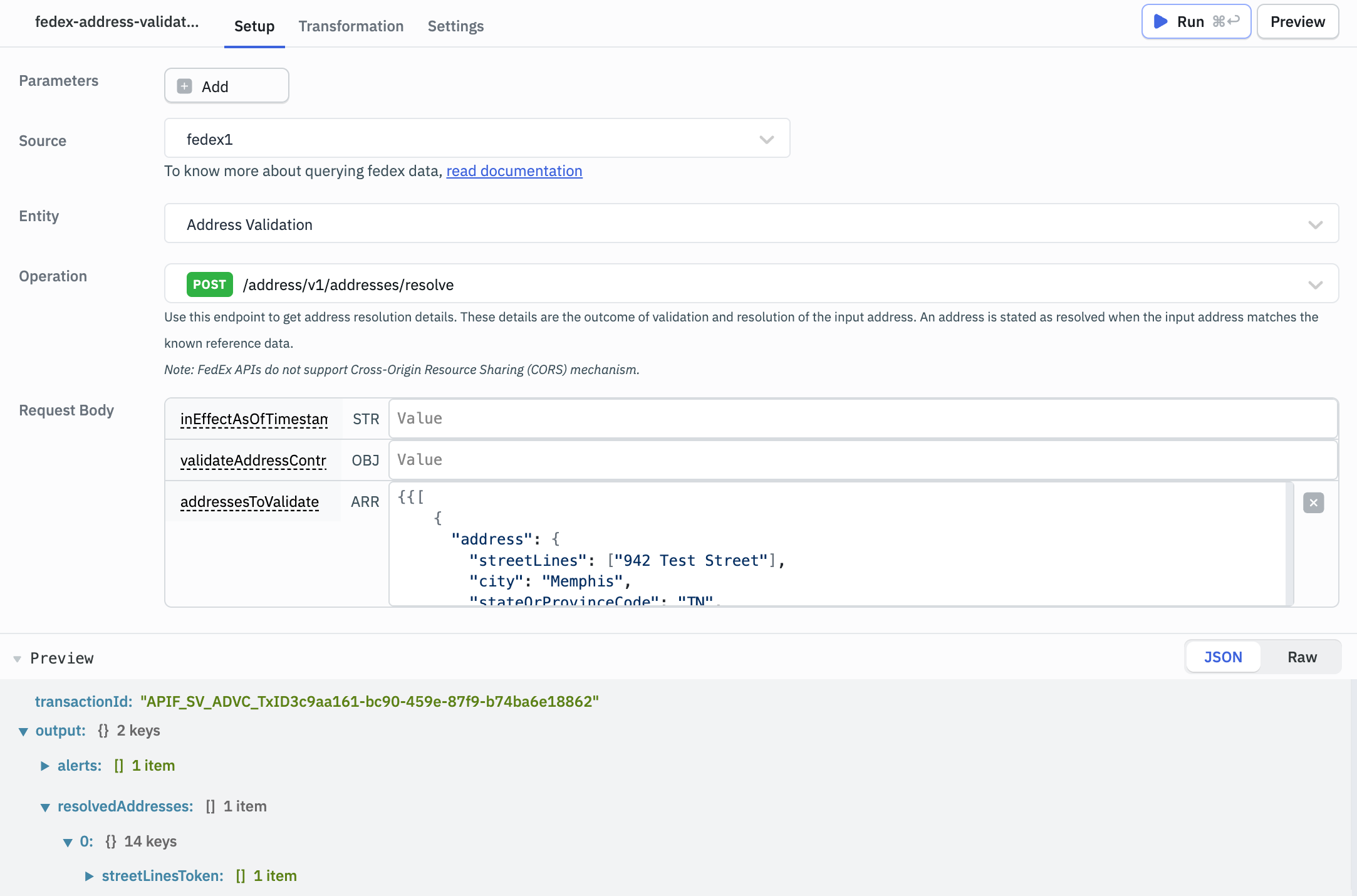

Validating an Address

Operation: POST /address/v1/addresses/resolve

Required Parameters

addressesToValidate

Optional Parameters

EffectAsOfTimestamp
validateAddressControlParameters

Sample Input

{{[
    {
      "address": {
        "streetLines": ["942 Test Street"],
        "city": "Memphis",
        "stateOrProvinceCode": "TN",
        "postalCode": "38120",
        "countryCode": "US"
      }
    }
  ]}}

Query Response Example

{
  "isLoading": false,
  "data": {
    "transactionId": "APIF_SV_ADVC_TxID3c9aa161-bc90-459e-87f9-b74ba6e18862",
    "output": {
      "alerts": [
        {
          "code": "VIRTUAL.RESPONSE",
          "message": "This is a Virtual Response.",
          "alertType": "NOTE"
        }
      ],
      "resolvedAddresses": [
        {
          "streetLinesToken": [
            "942 TEST STREET"
          ],
          "city": "Memphis",
          "stateOrProvinceCode": "RegiÃ³n Metropolitana de Santia",
          "postalCode": "38120",
          "parsedPostalCode": {
            "base": "38120"
          },
          "countryCode": "CL",
          "classification": "UNKNOWN",
          "ruralRouteHighwayContract": false,
          "generalDelivery": false,
          "customerMessages": [],
          "normalizedStatusNameDPV": false,
          "standardizedStatusNameMatchSource": "Postal",
          "resolutionMethodName": "GENERIC_VALIDATE",
          "attributes": {
            "POBox": "false",
            "SuiteRequiredButMissing": "false",
            "StreetPointNotApplicable": "false",
            "InvalidSuiteNumber": "false",
            "ResolutionInput": "RAW_ADDRESS",
            "ResolutionMethod": "GENERIC_VALIDATE",
            "DataVintage": "February 2023",
            "MatchSource": "Postal",
            "CountrySupported": "true",
            "ValidlyFormed": "true",
            "Matched": "true",
            "StreetOrganizationAddress": "false",
            "MissingOrAmbiguousDirectional": "false",
            "StreetNameAddress": "false",
            "StreetPointNotValidated": "true",
            "Inserted": "false",
            "RuralRoute": "false",
            "PostalDataSource": "Correos de Chile (Chile Postal Authority)",
            "InterpolatedStreetAddress": "false",
            "MultiUnitBase": "false",
            "StreetBuildingAddress": "false",
            "StreetRange": "false",
            "UniqueZIP": "false",
            "StreetAddress": "false",
            "RRConversion": "false",
            "SuiteNotValidated": "false",
            "ValidMultiUnit": "false",
            "AddressType": "STANDARDIZED",
            "AddressPrecision": "StreetName",
            "MultipleMatches": "false"
          }
        }
      ]
    }
  },
  "rawData": {
    "transactionId": "APIF_SV_ADVC_TxID3c9aa161-bc90-459e-87f9-b74ba6e18862",
    "output": {
      "alerts": [
        {
          "code": "VIRTUAL.RESPONSE",
          "message": "This is a Virtual Response.",
          "alertType": "NOTE"
        }
      ],
      "resolvedAddresses": [
        {
          "streetLinesToken": [
            "942 TEST STREET"
          ],
          "city": "Memphis",
          "stateOrProvinceCode": "RegiÃ³n Metropolitana de Santia",
          "postalCode": "38120",
          "parsedPostalCode": {
            "base": "38120"
          },
          "countryCode": "CL",
          "classification": "UNKNOWN",
          "ruralRouteHighwayContract": false,
          "generalDelivery": false,
          "customerMessages": [],
          "normalizedStatusNameDPV": false,
          "standardizedStatusNameMatchSource": "Postal",
          "resolutionMethodName": "GENERIC_VALIDATE",
          "attributes": {
            "POBox": "false",
            "SuiteRequiredButMissing": "false",
            "StreetPointNotApplicable": "false",
            "InvalidSuiteNumber": "false",
            "ResolutionInput": "RAW_ADDRESS",
            "ResolutionMethod": "GENERIC_VALIDATE",
            "DataVintage": "February 2023",
            "MatchSource": "Postal",
            "CountrySupported": "true",
            "ValidlyFormed": "true",
            "Matched": "true",
            "StreetOrganizationAddress": "false",
            "MissingOrAmbiguousDirectional": "false",
            "StreetNameAddress": "false",
            "StreetPointNotValidated": "true",
            "Inserted": "false",
            "RuralRoute": "false",
            "PostalDataSource": "Correos de Chile (Chile Postal Authority)",
            "InterpolatedStreetAddress": "false",
            "MultiUnitBase": "false",
            "StreetBuildingAddress": "false",
            "StreetRange": "false",
            "UniqueZIP": "false",
            "StreetAddress": "false",
            "RRConversion": "false",
            "SuiteNotValidated": "false",
            "ValidMultiUnit": "false",
            "AddressType": "STANDARDIZED",
            "AddressPrecision": "StreetName",
            "MultipleMatches": "false"
          }
        }
      ]
    }
  },
  "id": "5320b5cf-0ac0-4d90-b407-8d6f32018fc2"
}

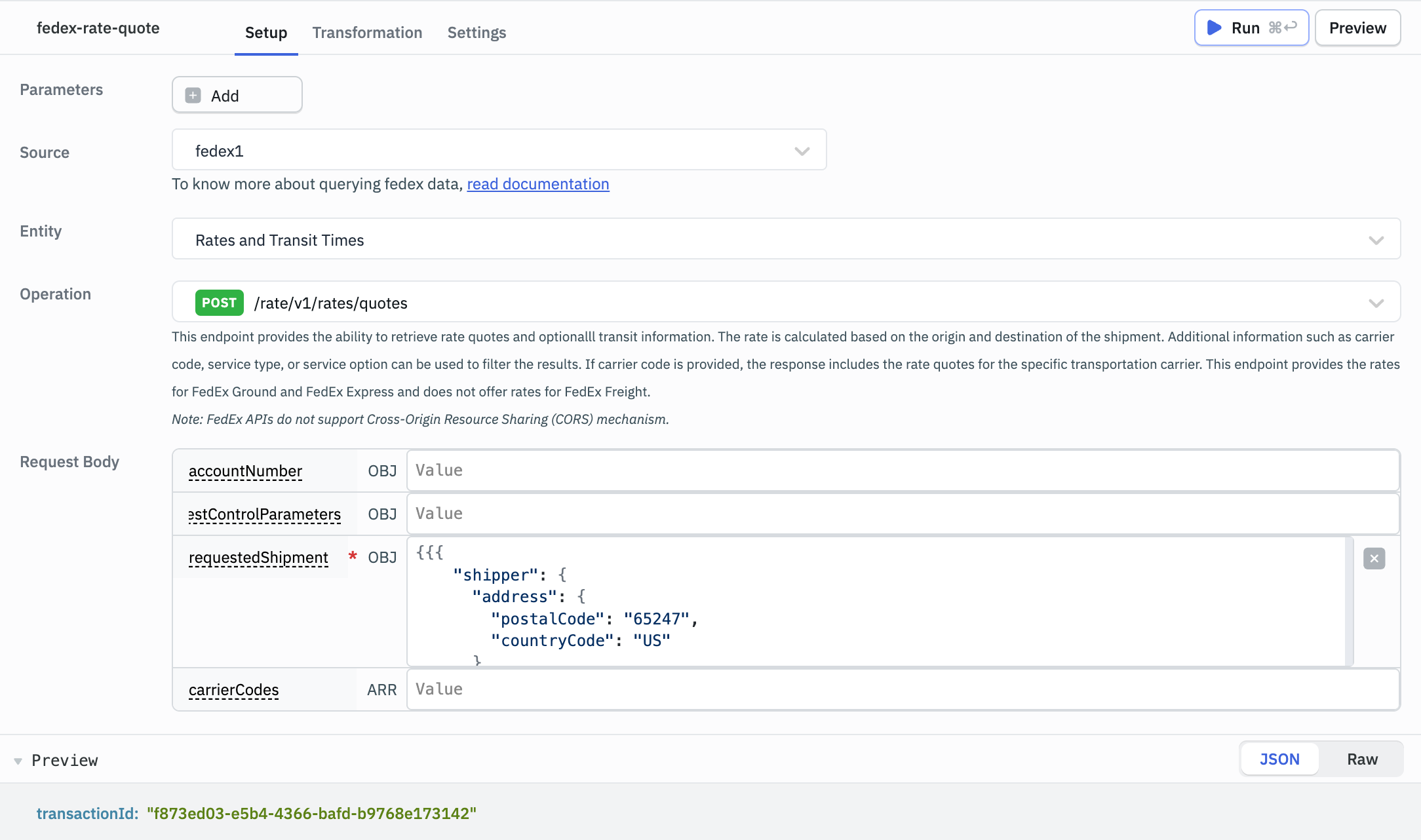

Creating a Rate Quote

Operation: POST /rate/v1/rates/quotes

Required Parameters

requesedShipment

Optional Parameter

accountNumber
rateRequestControlParameters
carrierCodes

Sample Input

{{{
    "shipper": {
      "address": {
        "postalCode": "65247",
        "countryCode": "US"
      }
    },
    "recipient": {
      "address": {
        "postalCode": "72348",
        "countryCode": "US"
      }
    },
    "pickupType": "DROPOFF_AT_FEDEX_LOCATION",
    "rateRequestType": [
      "ACCOUNT",
      "LIST"
    ],
    "requestedPackageLineItems": [
      {
        "weight": {
          "units": "LB",
          "value": "10"
        }
      }
    ]
}}}

Query Response Example

{
  "isLoading": false,
  "data": {
    "transactionId": "0c547414-a28d-45a8-88a5-7d47e5542df1"
  },
  "rawData": {
    "transactionId": "0c547414-a28d-45a8-88a5-7d47e5542df1"
  },
  "id": "5320b5cf-0ac0-4d90-b407-8d6f32018fc2"
}
