CouchDB

ToolJet can connect to CouchDB databases to read and write data.

Connection​

To establish a connection with the CouchDB data source, you can either click on the + Add new Data source button located on the query panel or navigate to the Data Sources page through the ToolJet dashboard.

ToolJet requires the following to connect to your CouchDB.

  • Username
  • Password
Couch listing

Querying CouchDB​

  1. Click on + Add button of the query manager at the bottom panel of the editor.
  2. Select the CouchDB datasource added in previous step.
  3. Select the operation you want to perform and enter the query.
  4. Click on the Preview button to preview the output or Click on the Run button to create and trigger the query.

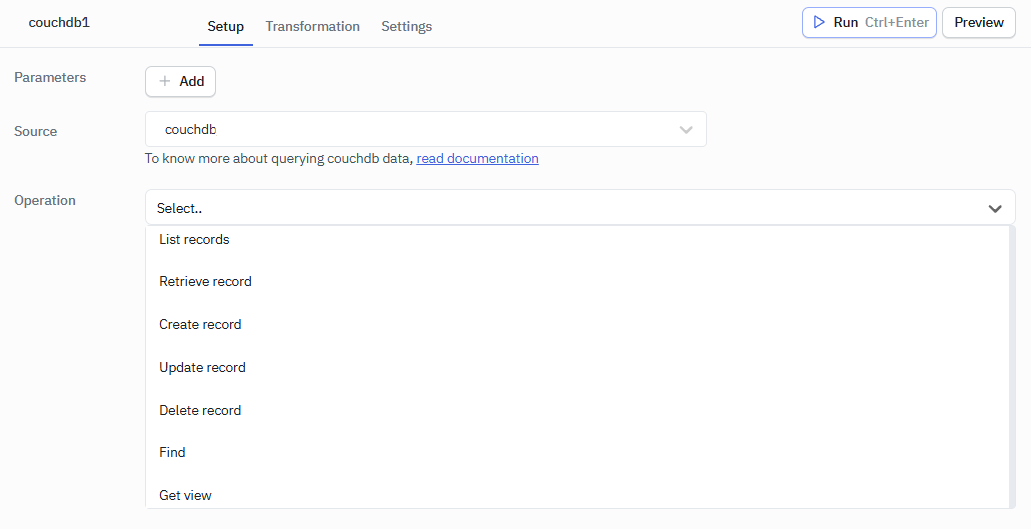

Couch listing

Supported Queries​

List Records​

This query lists all the records in a database.

Optional Parameters​

  • Include docs
  • Descending order
  • Limit
  • Skip

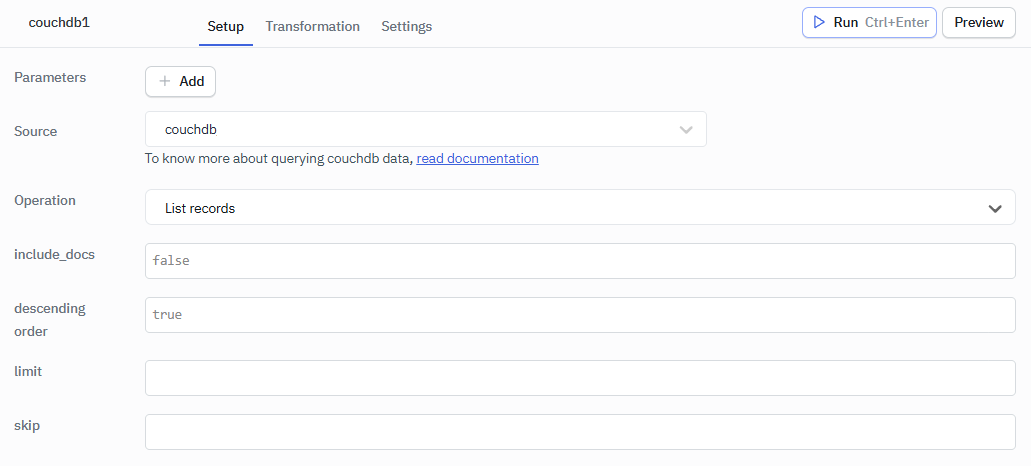

Couch listing
Response Example
{
  "total_rows": 3,
  "offset": 0,
  "rows": [
      {
          "id": "23212104e60a71edb42ebc509f000dc2",
          "key": "23212104e60a71edb42ebc509f000dc2",
          "value": {
              "rev": "1-0cc7f48876f15883394e5c139c628123"
          }
      },
      {
          "id": "23212104e60a71edb42ebc509f00216e",
          "key": "23212104e60a71edb42ebc509f00216e",
          "value": {
              "rev": "1-b3c45696b10cb08221a335ff7cbd8b7a"
          }
      },
      {
          "id": "23212104e60a71edb42ebc509f00282a",
          "key": "23212104e60a71edb42ebc509f00282a",
          "value": {
              "rev": "1-da5732beb913ecbded309321cac892d2"
          }
      },
  ]
}

Retrieve Record​

This operation fetches a single record by its record ID.

Required Parameters:​

  • Record ID

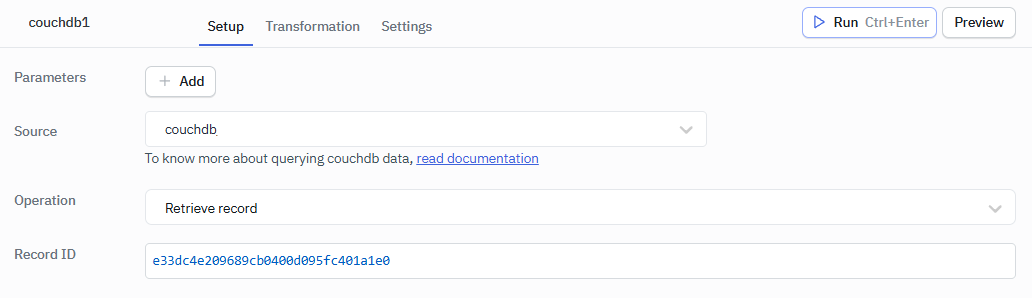

Couch retrieve view
Response Example
{
    "_id": "e33dc4e209689cb0400d095fc401a1e0",
    "_rev": "1-a62af8e14451af88c150e7e718b7a0e8",
    "0": {
        "name": "test data"
    }
}

Create Record​

Inserts a new record into the database.

Required Parameters:​

  • Records

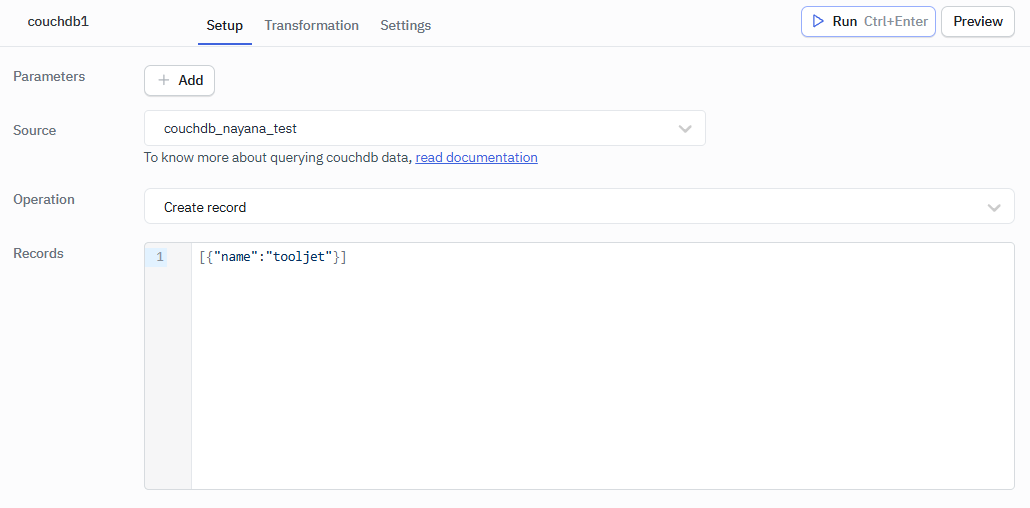

Couch create view

Example​

  [{"name":"tooljet"}]
Response Example
{
    "ok": true,
    "id": "23212104e60a71edb42ebc509f0049a2",
    "rev": "1-b0a625abc4e21ee554737920156e911f"
}

Update Record​

You can get the revision id value, by sending a GET request to get the document details. You get the document as JSON in the response. For each update to the document, the revision field "_rev" gets changed.

Required Parameters:​

  • Record ID
  • Revision ID

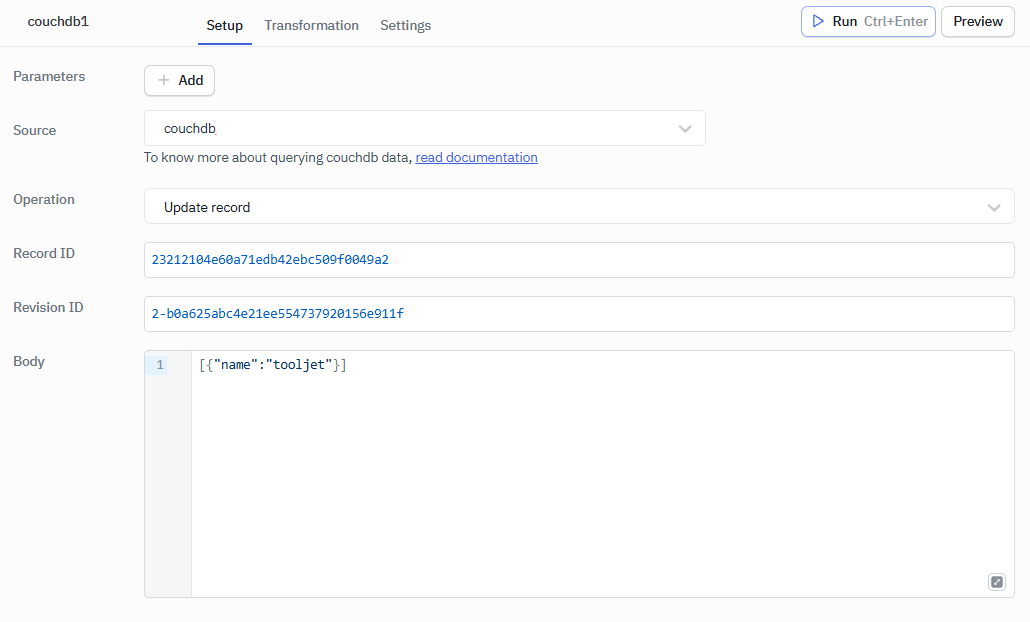

Couch update view

Example​

[{"name":"tooljet"}]
Response Example
{
    "ok": true,
    "id": "23212104e60a71edb42ebc509f0049a2",
    "rev": "2-b0a625abc4e21ee554737920156e911f"
}

Delete Record​

Removes a record from the database by its record ID.

Required Parameters:​

  • Record ID
  • Revision ID

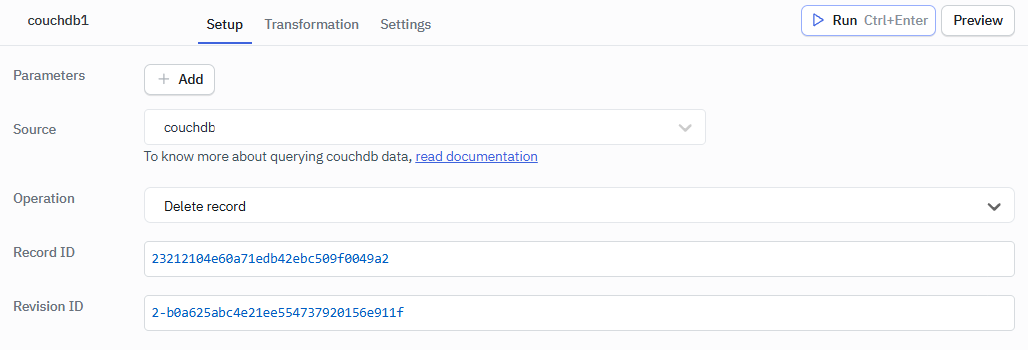

Couch delete view
Response Example
{
    "ok": true,
    "id": "rev_id=2-3d01e0e87139c57e9bd083e48ecde13d&record_id=e33dc4e209689cb0400d095fc401a1e0",
    "rev": "1-2b99ef28c03e68ea70bb668ee55ffb7b"
}

Find​

Find documents using a declarative JSON querying syntax.

Required Parameters:​

  • Mangoquery
info

NOTE: selector syntax: https://pouchdb.com/guides/mango-queries.html

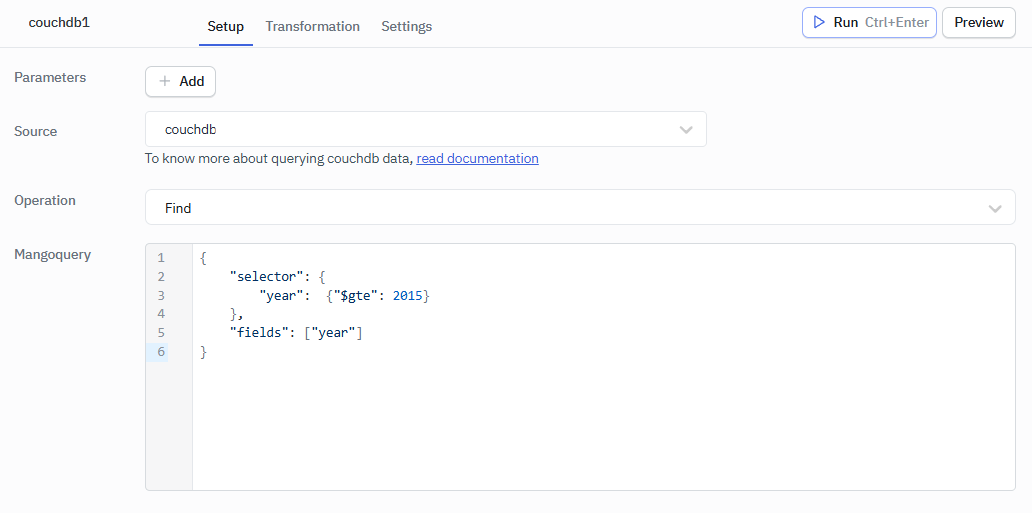

Couch find

Example​

{
    "selector": {
        "year":  {"$gte": 2015}
    },
    "fields": ["year"]
}

Example response from CouchDB:

Couch find response

Get View​

Views are the primary tool used for querying and reporting on CouchDB documents.

Required Parameters​

  • View url

Optional Parameters:​

  • Start key
  • End key
  • Limit
  • Skip

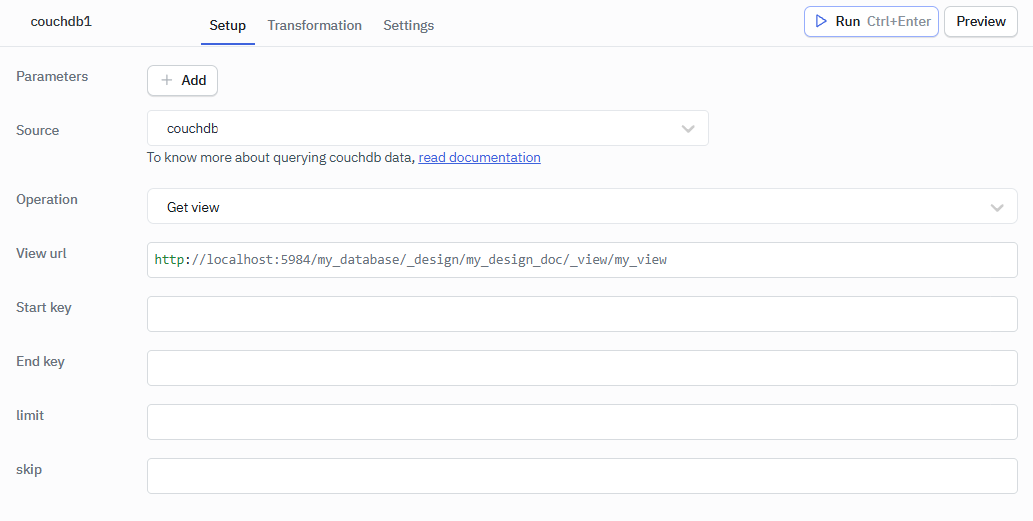

Couch get view
Response Example
  {
      "total_rows": 4,
      "offset": 0,
      "rows": [
          {
              "id": "23212104e60a71edb42ebc509f000dc2",
              "key": "23212104e60a71edb42ebc509f000dc2",
              "value": {
                  "rev": "1-0cc7f48876f15883394e5c139c628123"
              }
          },
          {
              "id": "23212104e60a71edb42ebc509f00216e",
              "key": "23212104e60a71edb42ebc509f00216e",
              "value": {
                  "rev": "1-b3c45696b10cb08221a335ff7cbd8b7a"
              }
          },
          {
              "id": "23212104e60a71edb42ebc509f00282a",
              "key": "23212104e60a71edb42ebc509f00282a",
              "value": {
                  "rev": "1-da5732beb913ecbded309321cac892d2"
              }
          },
          {
              "id": "23212104e60a71edb42ebc509f002cbd",
              "key": "23212104e60a71edb42ebc509f002cbd",
              "value": {
                  "rev": "1-ca5bb3c0767eb42ea6c33eee3d395b59"
              }
          }
      ]
  }
