GitHub Configuration

Paid feature

The GitHub Configuration for GitSync introduces a more flexible way to connect your ToolJet instance to a Git repository. Compared to traditional SSH-based setups, it works over HTTPS, helping you avoid SSH port blocks, and lets you choose branches directly from the UI.

Role Required: Admin

1. Create a New Repository

Create a new repository on your GitHub. The repository can be public or private. You can also use an existing repository. Make sure that the repository is empty.

2. Create the GitHub App

Setup a GitHub App and make sure it is created by the same owner as the Git repository. If you have multiple ToolJet instances, use this same GitHub App across all instances.

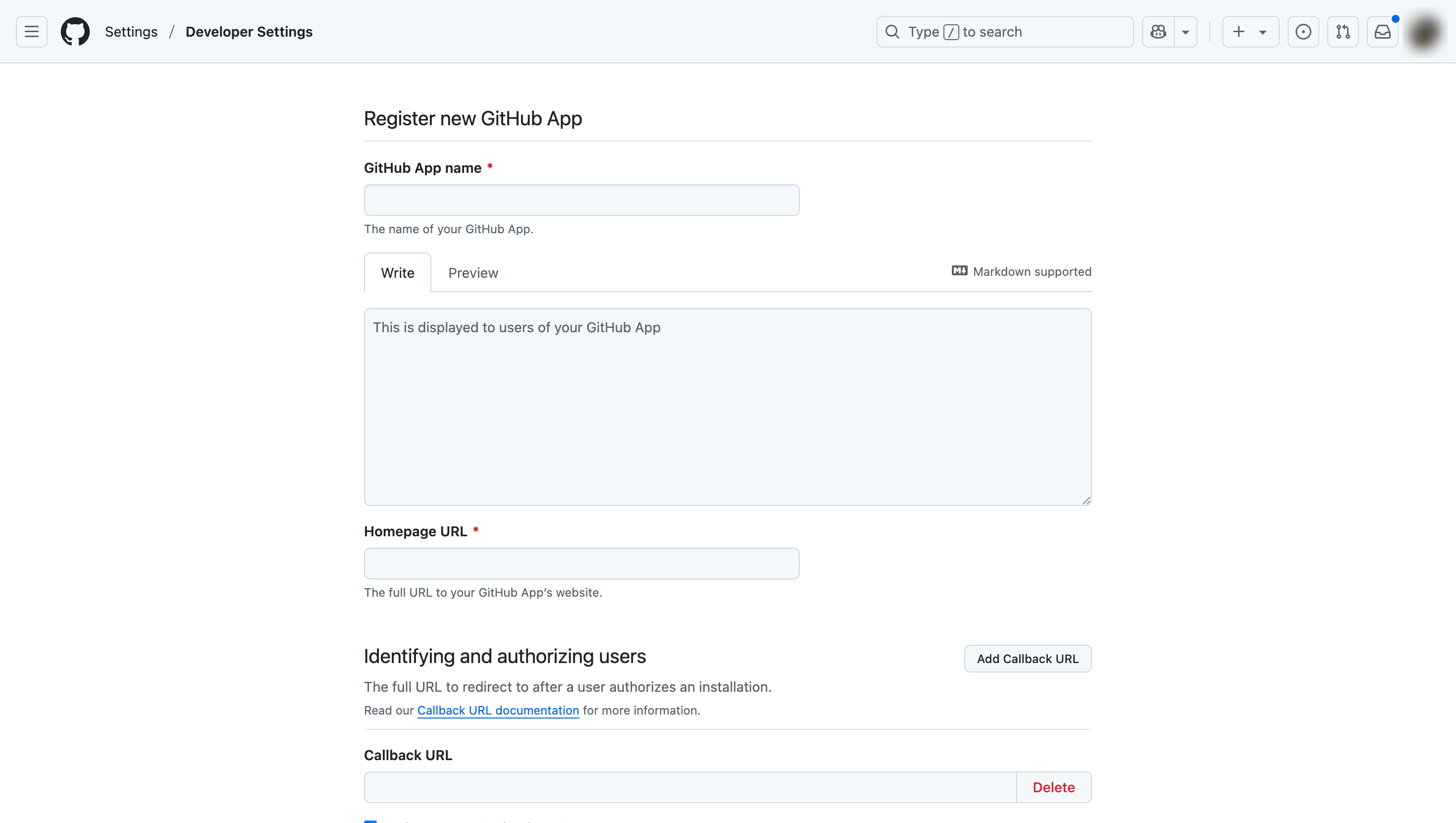

Enter your App details on the Register new GitHub App page and make sure to update the following fields:

• Uncheck the Expire user authorization tokens and Active checkbox under Identifying and authorizing users and Webhook sections respectively.
• Add the following Repository permissions:
  • Contents: Read & Write
  • Pull requests: Read & Write

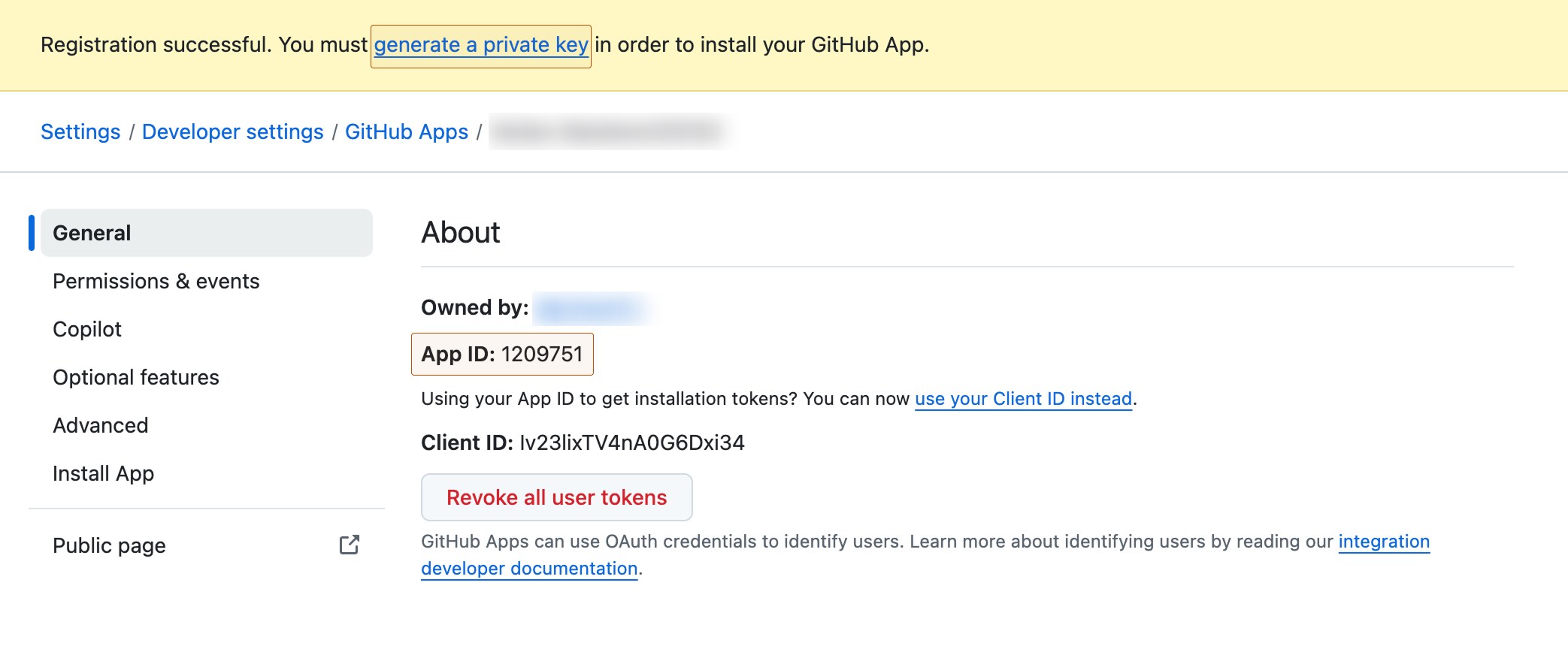

After creating the GitHub App, you will be directed to the GitHub App Settings page. Here, make sure to copy the App ID. Next, generate the Private key (.pem key), download it, and store it securely. This information will be essential later when configuring GitSync.

3. Install the GitHub App

To install your GitHub App, follow these steps:

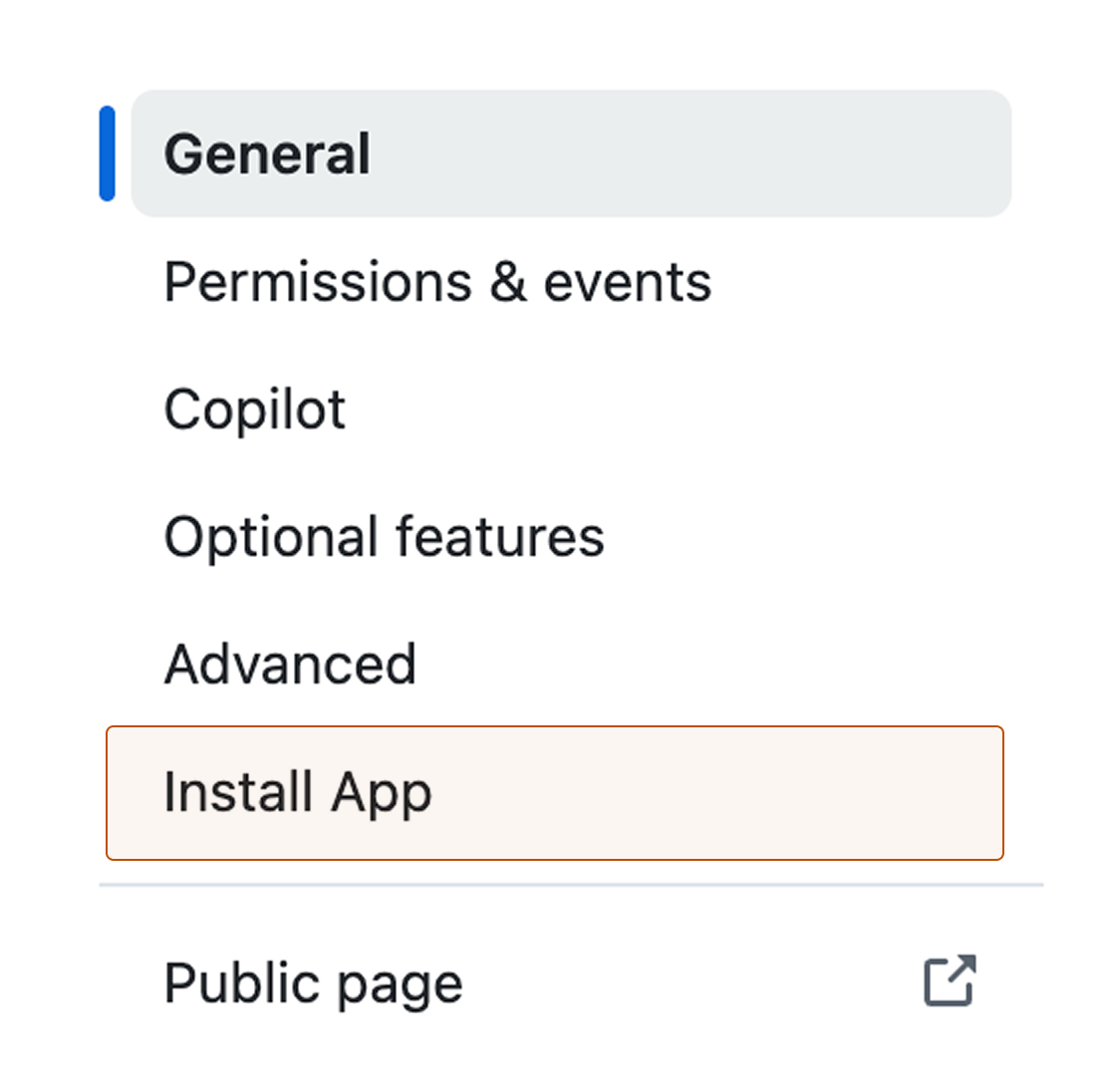

• Click on Install App on the GitHub App Settings page.

• Click the Install button next to your organization.
• Select repositories option and select the repositories you want to connect to ToolJet.
• You’ll be redirected to the installation page. The number at the end of the URL is the installation ID. Save this for later.

https://github.com/settings/installations/:installation_id

4. Configure GitHub in GitSync

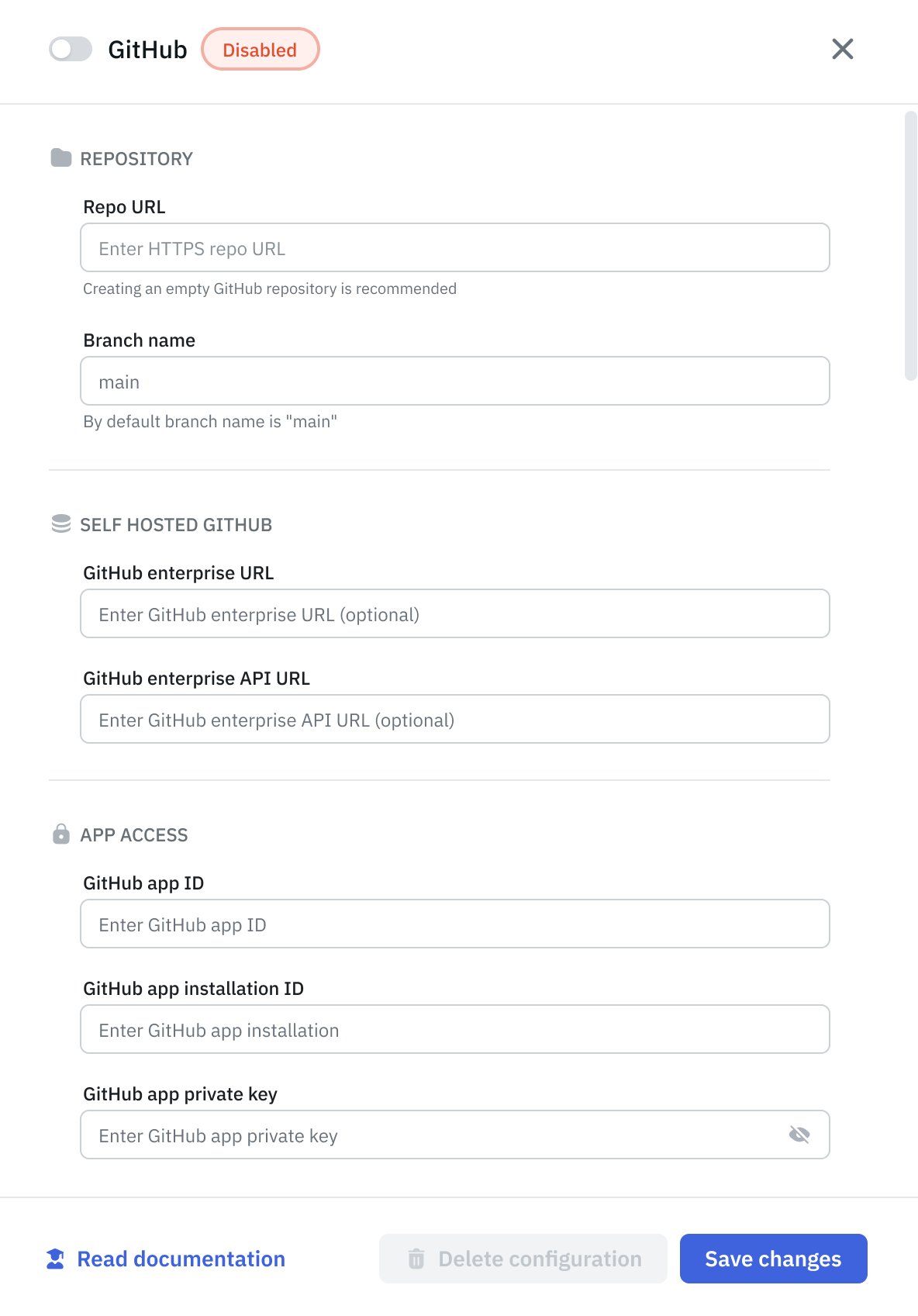

Navigate to the Workspace settings page and click on the Configure git tab. Then, enter the required configuration values after selecting GitHub as your repository provider.

The table below describes each configuration values:

Repository

Setting	Description
Repo URL	The URL of the repository you created to use with ToolJet. (e.g https://github.com/your-org/repo-name.git)
Branch name	Branch name of your repo. By default, it uses the main branch.

Self-hosted GitHub (Optional)

Setting	Description
GitHub enterprise URL	The domain used to access your self-hosted GitHub instance. If you use GitHub Cloud, you can leave this blank.
GitHub enterprise API URL	The API endpoint for your self-hosted GitHub instance. If you use GitHub Cloud, you can leave this blank. (e.g. https://[hostname]/api/v3/)

App Access

Setting	Description
GitHub app ID	The GitHub App ID.
GitHub app installation ID	The GitHub installation ID.
GitHub app private key	Private key you downloaded after App creation.

Once you've entered the necessary configurations, click Save Changes. Your ToolJet instance will now be connected to your GitHub repository.
