Data Flow

This section explains how data flows work between the parent application and the module.

There are two types of data flows between the parent application and the module:

  • From Parent to Module
  • From Module to Parent

From Parent to Module​

When you add a module to an app:

  • The parent can pass input values to the module.
  • These values can be used anywhere inside the module (UI, queries, logic).

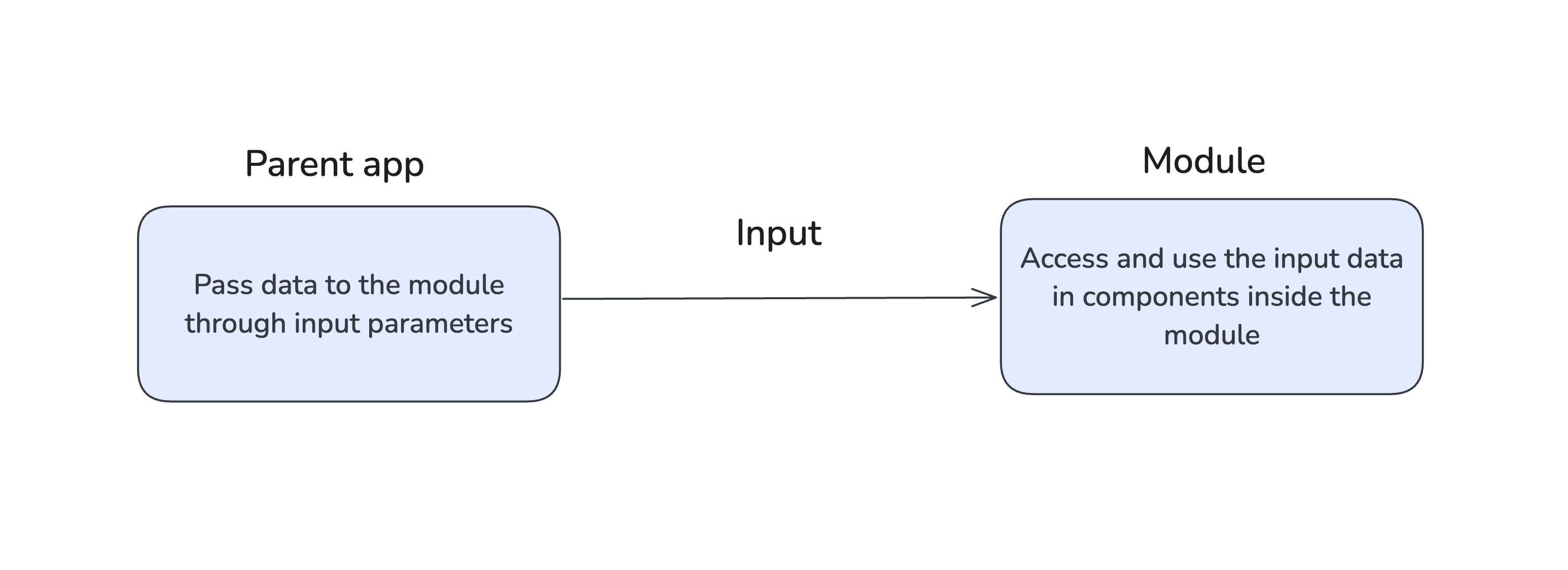

Data flow from parent to module

For example, let's say you want to pass the userData from the parent application to the module. Here's what happens:

// Passed from parent
{
  "userData": {{ queries.getUser.data }}
}

You can access these values in the module using the input object. For instance, to access the userData, you'd use {{input.userData}}.

// Consumed in module
{{input.userData}}

From Module to Parent​

The module can send data back to the parent using outputs:

  • Output values are evaluated inside the module.
  • The parent application reads the output values using the components object.

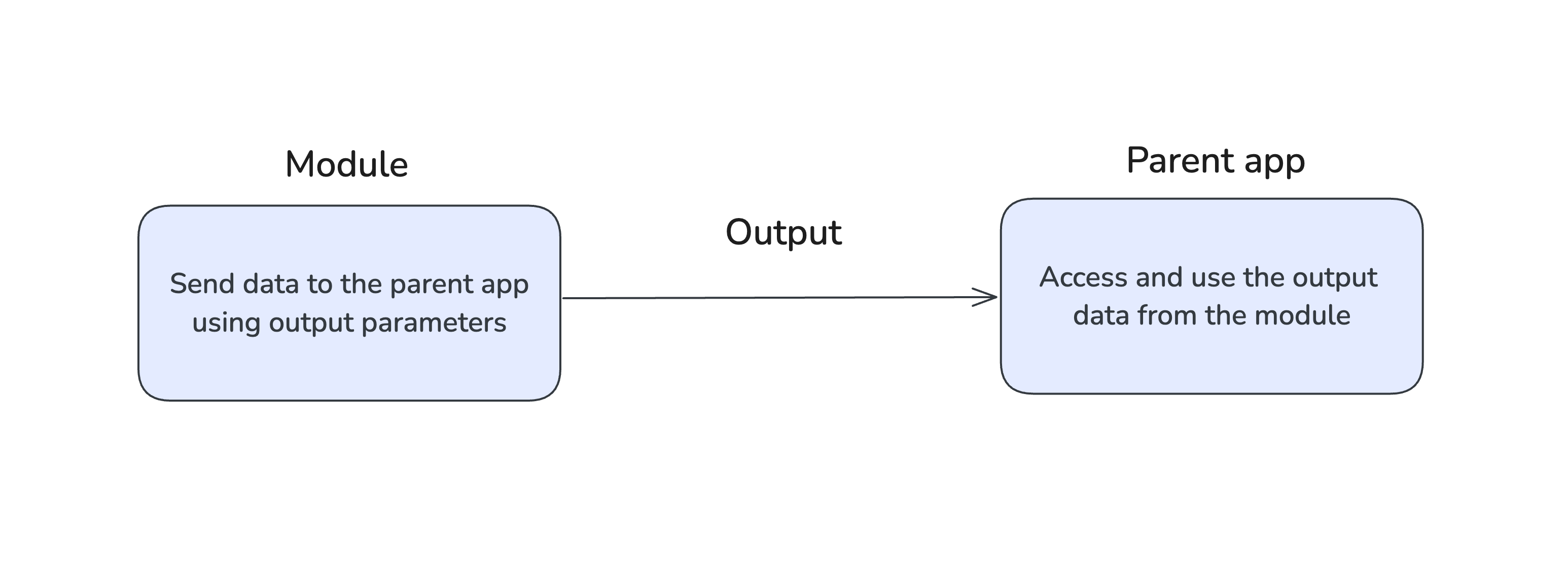

Data flow from module to parent

For example, let's say you have a module that submits a form and sends the submitted data back to the parent app. Here's what happens:

// Sent from module
{
  "submittedFormData": {{ components.form.formData }}
}

You can access these values in the parent application using the components object. For instance, to access the submittedFormData, you'd use {{components.<moduleName>.submittedFormData}}.

// Received in parent app
{{components.<moduleName>.submittedFormData}}

Query Execution Options​

You have two options for managing queries in modules:

Parent-triggered Queries​

  • Define queries inside the module.
  • From the parent application, trigger them using module Input query.
  • Use this when you want full control from the app.

Self-contained Queries​

  • Let the module handle its own queries internally (e.g., run on load or button click inside the module).
  • These queries remain invisible to the parent app.
  • Use this for fully encapsulated behavior.

Choose based on whether the parent should control the module behavior or let the module manage itself.
