Implementing Navigation Using Actions

ToolJet offers page navigation out of the box. For any custom navigation needs, such as implementing a navigation bar, you can use event handlers and actions. You can also pass query parameters during navigation, making it easy to share context between pages.

Building Custom Navigation Menu​

Follow these steps to build a custom navigation menu:

  1. Add a container to serve as your navigation wrapper.
  2. Place icons, text or button components inside the container for each page you want to link to.
  3. For each navigation item:
    • Select the component (icon or text).
    • Add an event handler.
      • Event: On click
      • Action: Switch page
      • Page: Select the target page from the dropdown

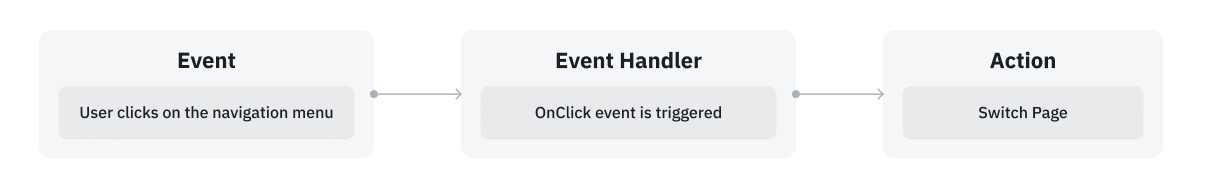

Events Architecture Diagram

Once configured, clicking on a navigation item will take the user to the corresponding page.

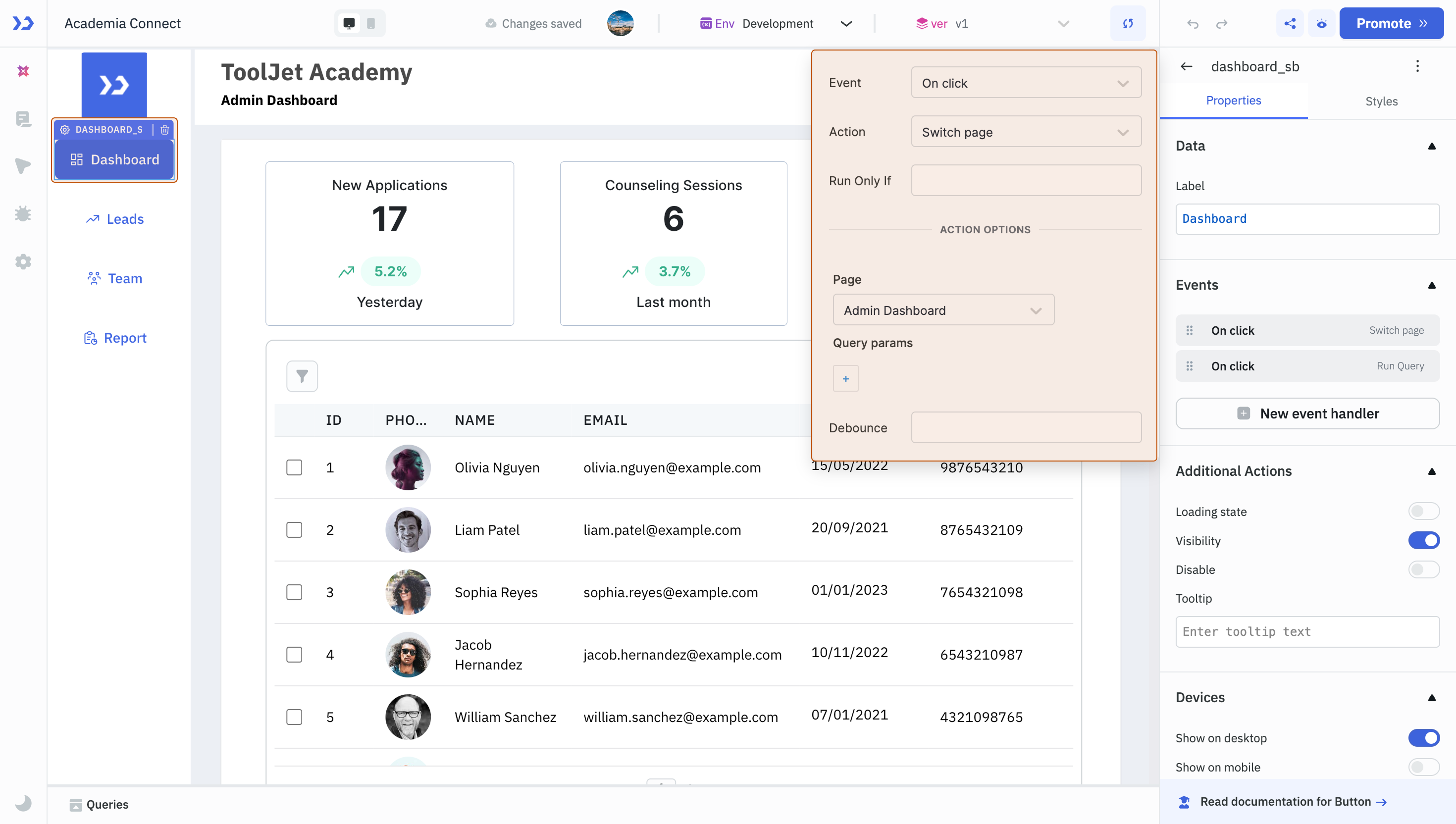

Events Architecture Diagram

Passing Data Between Pages​

Suppose you're building a ticket management system where Page 1 displays a list of all tickets, and clicking on a ticket redirects the user to Page 2, which shows the details of the selected ticket. Here's how to set it up:

  1. On Page 1, display all the tickets using a Table component.
  2. Add an event handler to the table:
    • Event: Row clicked
    • Action: Switch page
    • Page: Page 2 (Select the ticket details page.)
    • Query parameters:
      • Key: ticketId
      • Value: {{components.ticketTable.selectedRow.ticket_id}}
  3. On Page 2, design the UI to display the ticket details.
  4. Use the query parameter to fetch or display the selected ticket's data:
    • Reference it with: {{globals.urlparams.ticketId}}

This setup enables users to click on a ticket in the table and seamlessly navigate to a detailed view of that specific ticket, with the necessary data passed between pages using query parameters.
