Canvas and Layout

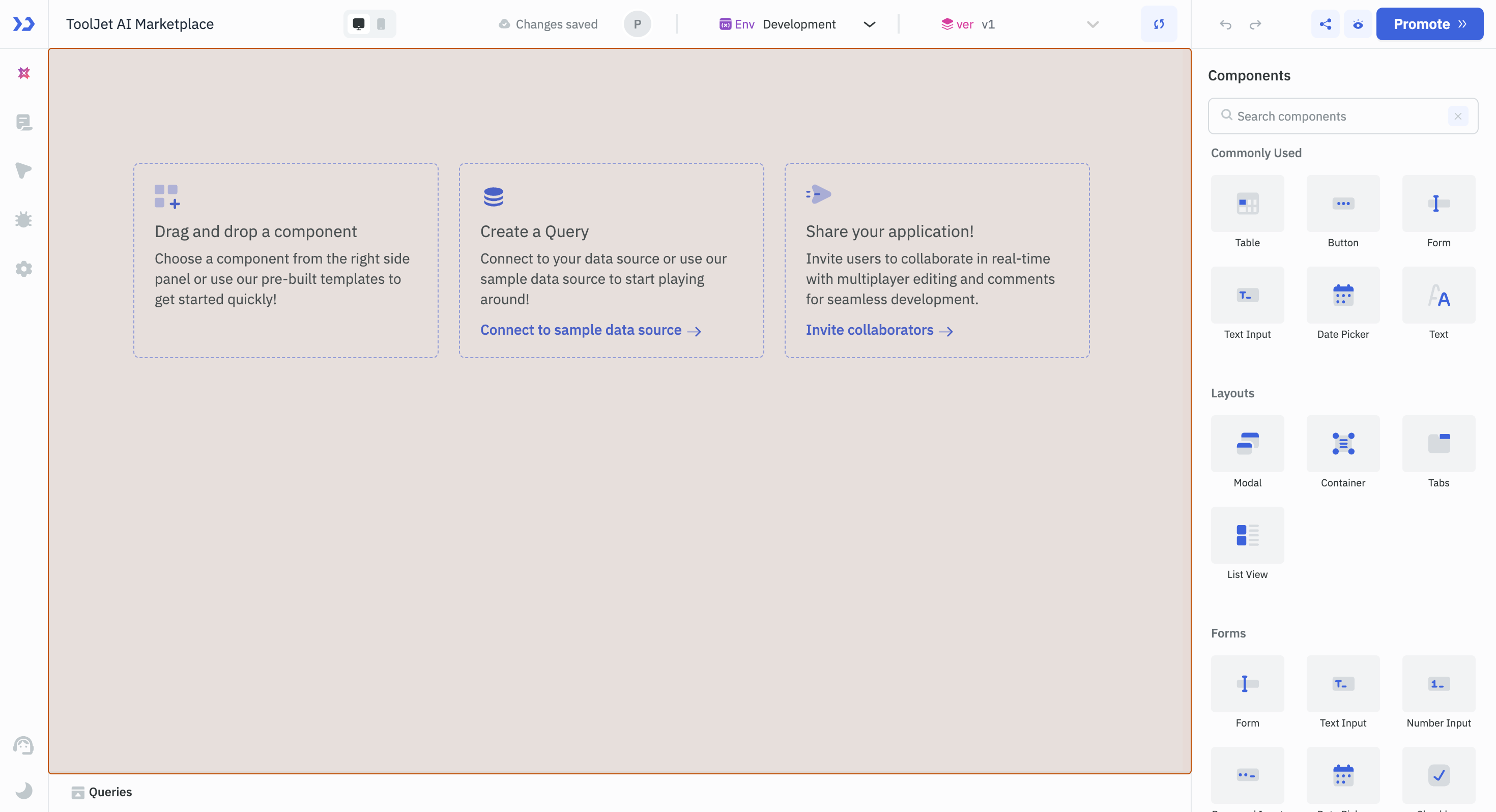

Canvas is the main area in the app-builder where you build your application and design the user interface.

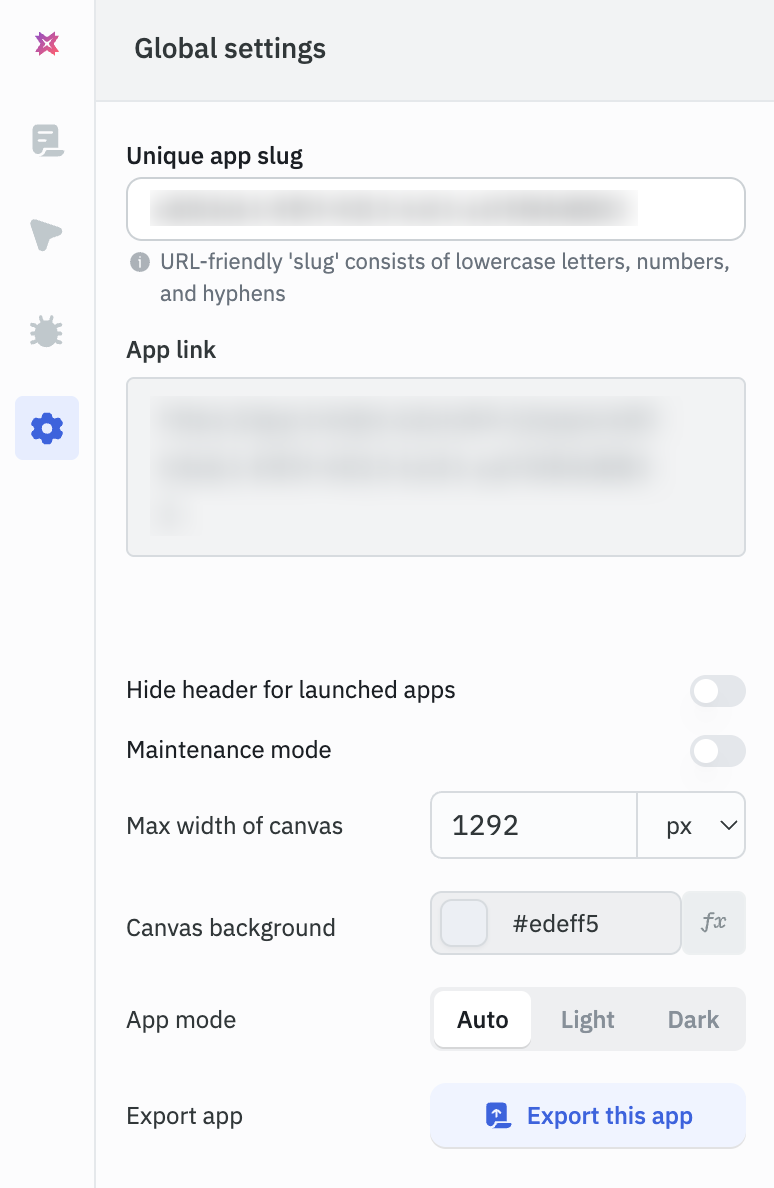

Customizing Canvas

Through Global Settings, you can customize the following properties of the Canvas:

• Max width of canvas: Defines the maximum width of the canvas, which can be set in pixels or as a percentage of the screen size. The height of the canvas expands automatically as more components are added.
• Canvas background: Sets the background color of the canvas. This can also be controlled dynamically by clicking on fx and entering a logical expression.
• App mode: You can choose from three theme modes
  • Auto: Adapts to the browser's theme settings or allows users to switch between light and dark modes.
  • Light: Keeps the app in light mode, users cannot switch to dark mode.
  • Dark: Keeps the app in dark mode, users cannot switch to light mode.

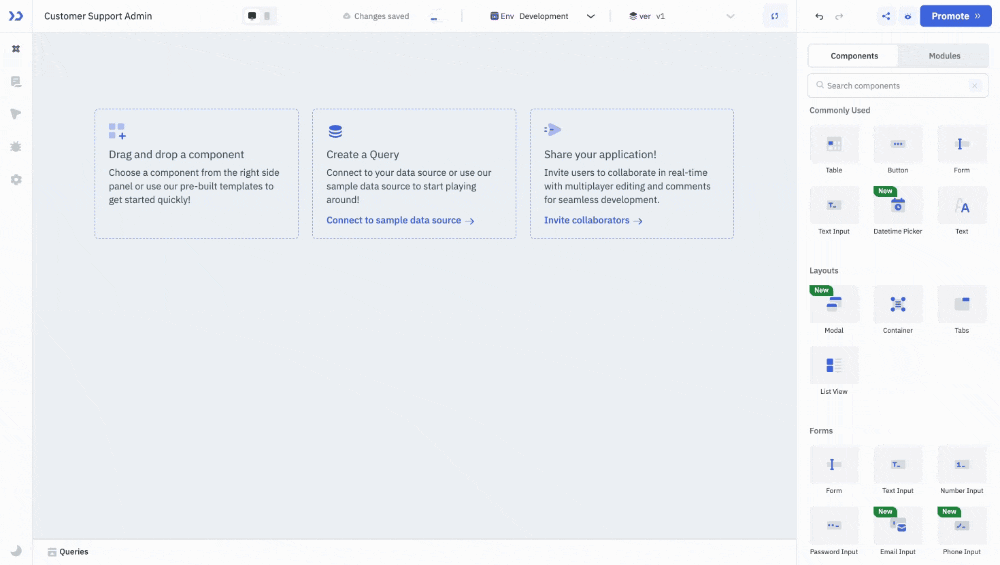

Building the User Interface

To build the user interface, components can be dragged from the Components Library on the right. Use the Component Handle to reposition a component. A component can be resized from any of its edges or corners.

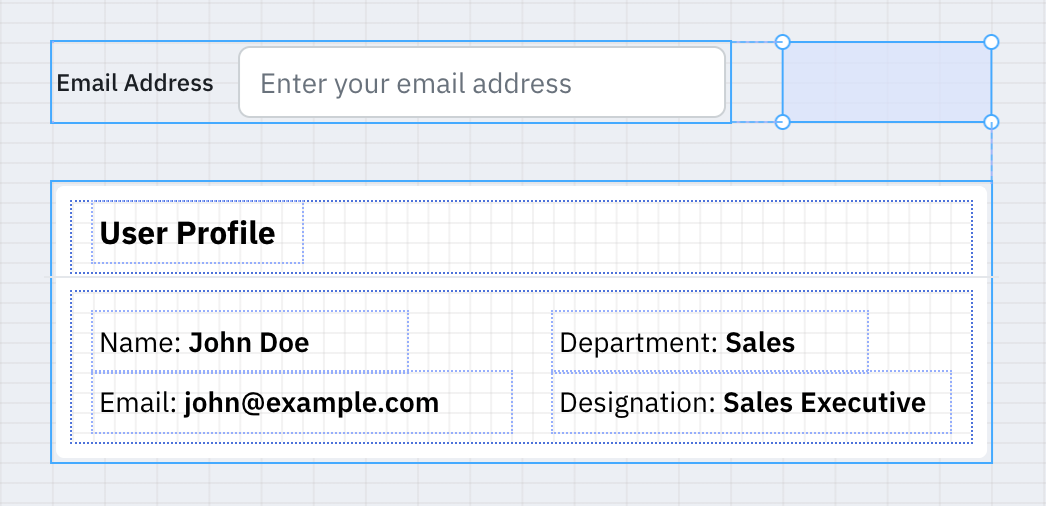

Grid, Snapping and Markers

ToolJet's Canvas provides a grid background, smart snapping, and visual markers to support precise alignment and positioning of components. Components automatically snap to grid lines and nearby elements, reducing the need for manual adjustments. Each cell on the canvas grid has a fixed height of 10 pixels. The width of each cell adjusts based on the screen size.

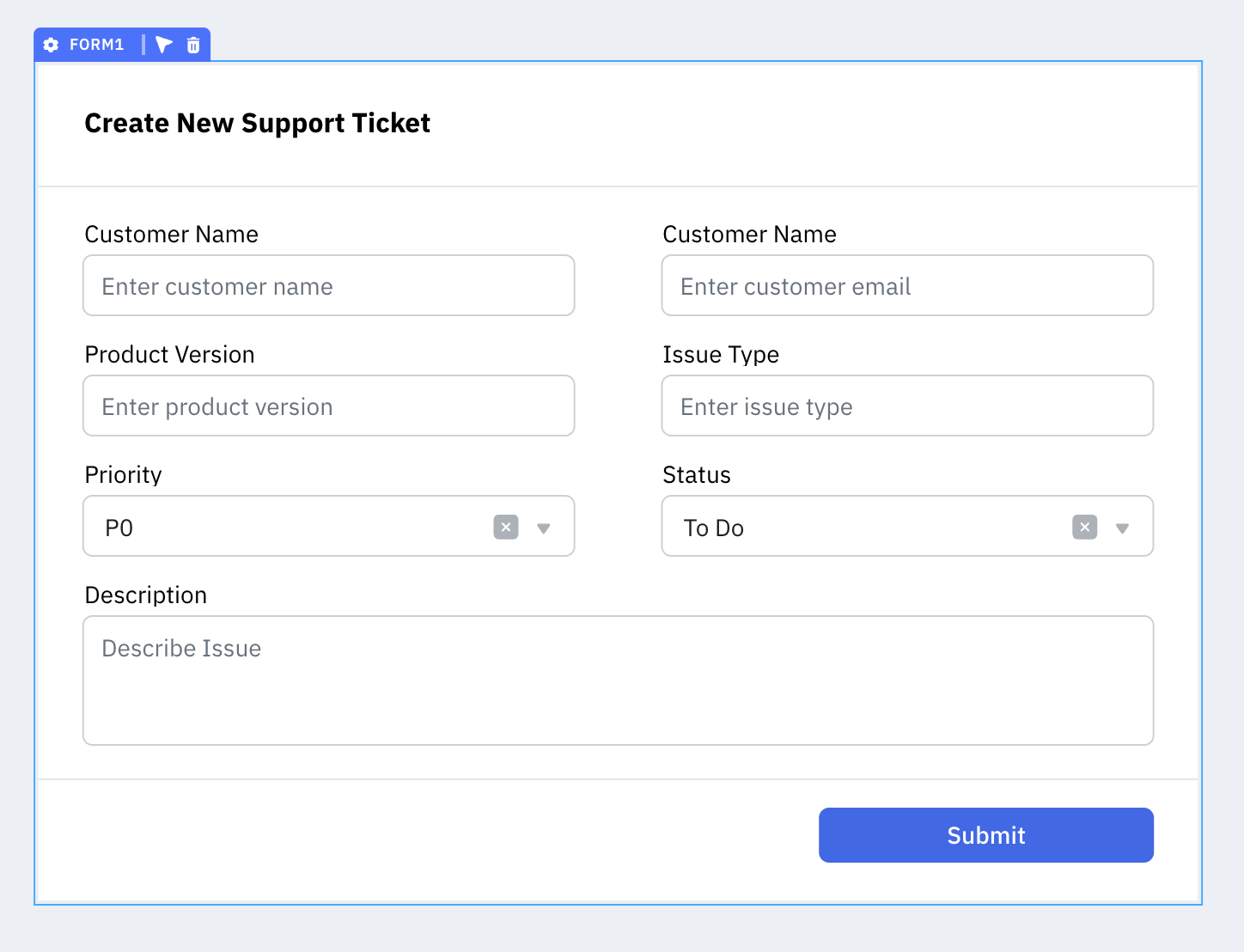

Creating Layout

In ToolJet, components can be grouped using a Layout component such as a Container or a Form. You can drag and drop the relevant components into the layout components on the canvas to create a section.

Managing Components on Canvas

Select and Move Multiple Components

You can select multiple components by clicking and dragging over them, or by clicking individually while holding the Shift key. Once selected, all components can be moved together as a group.

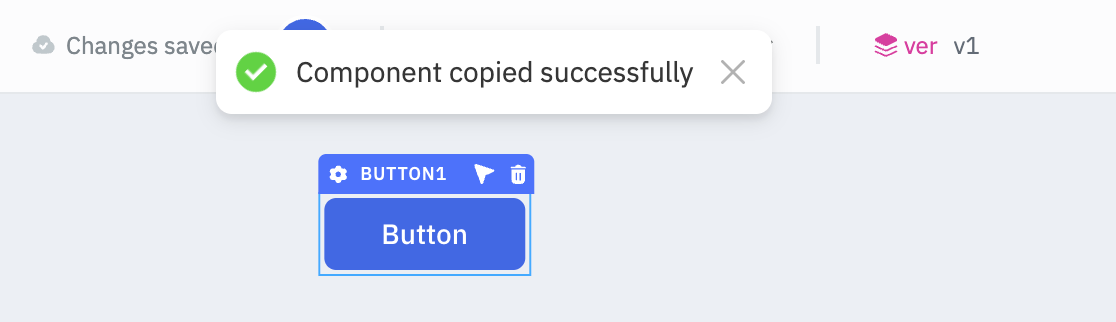

Copy Components

Components on the canvas can be copied using Cmd/Ctrl + C.

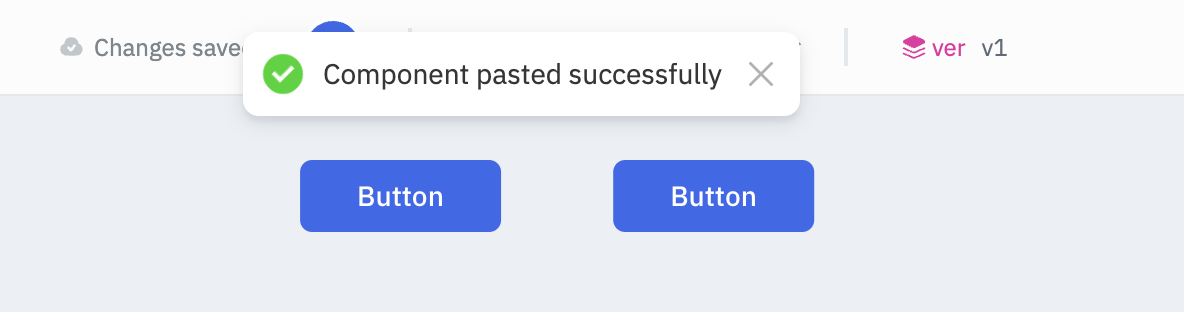

Paste Components

Copied components can be pasted onto the canvas using Cmd/Ctrl + V.

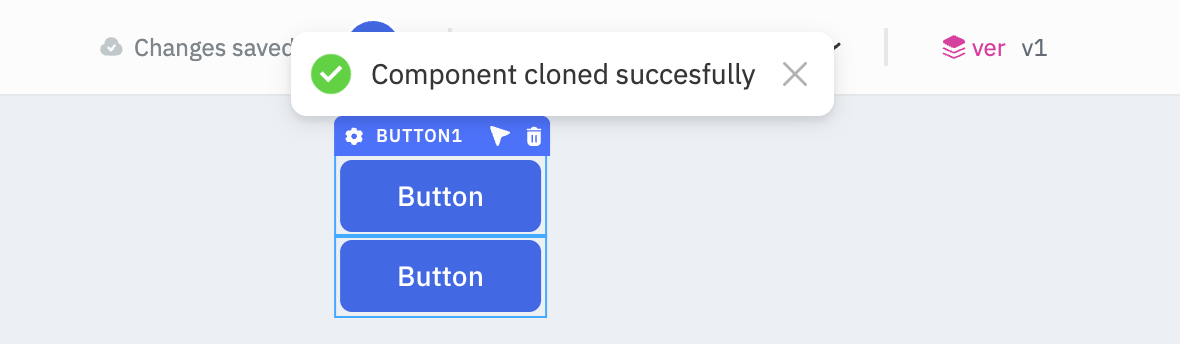

Clone Components

Components on the canvas can be cloned using Cmd/Ctrl + D. Unlike copy and paste, cloning creates a duplicate of the selected component instantly.

note

For additional shortcuts, refer to the Keyboard Shortcuts Guide.
